WI-PMS326GF
● 24 Gigabit PoE ports and 2 Gigabit SFP Slots
● 24 802.3af/at PoE ports with a total power supply of 400W
● Support IGMP Snooping, Link Aggregation, Loop Prevention
● QoS and IGMP snooping function optimize voice, video applications
● Support Web, CLI(Console Port, Telnet, SSH), SNMP and RMON bring powerful management capabilities
|
Hardware Specifications |
|||
|
Hardware Version |
V1 |
||
|
Interface |
24x10/100/1000Mbps RJ45 Ports 2x1000Mbps SFP Slots 1xConsole Port |
||
|
Port Standard |
IEEE 802.3 i:10BASE-T Ethernet; |
||
|
PoE Standard |
802.3af/at |
||
|
PoE Ports |
24 up to 30W |
||
|
PoE Power Budget |
370W |
||
|
Power Supply |
100-240V AC~50/60 Hz 400W |
||
|
Standby Power Consumption |
30W |
||
|
Switching Capacity |
52Gbps |
||
|
Packet Forwarding Rate |
38.7 Mpps |
||
|
Jumbo Frame |
16KB |
||
|
MAC Address Table |
16K |
||
|
DRAM |
128MB |
||
|
Flash |
128MB |
||
|
Dimensions ( W x D x H ) |
440mm*290mm*45mm |
||
|
Fan Quantity |
2 Fan |
||
|
Protection Level |
Common Mode ± 6KV, Differential Mode ± 4KV |
||
|
Electrostatic Standard |
Contact 6KV Air 8KV |
||
|
Transmission Mode |
Store— Forward |
||
|
Installation |
Rack- Mounted |
||
|
Software Features |
|||
|
Spanning Tree |
IEEE 802.1D - STP |
||
|
IEEE 802.1w - RSTP |
|||
|
IEEE 802.1s - MSTP |
|||
|
BPDU Guard |
|||
|
Ring protocol |
Support ERPS ring network protocol |
||
|
Support RPL configuration |
|||
|
EAPS |
|||
|

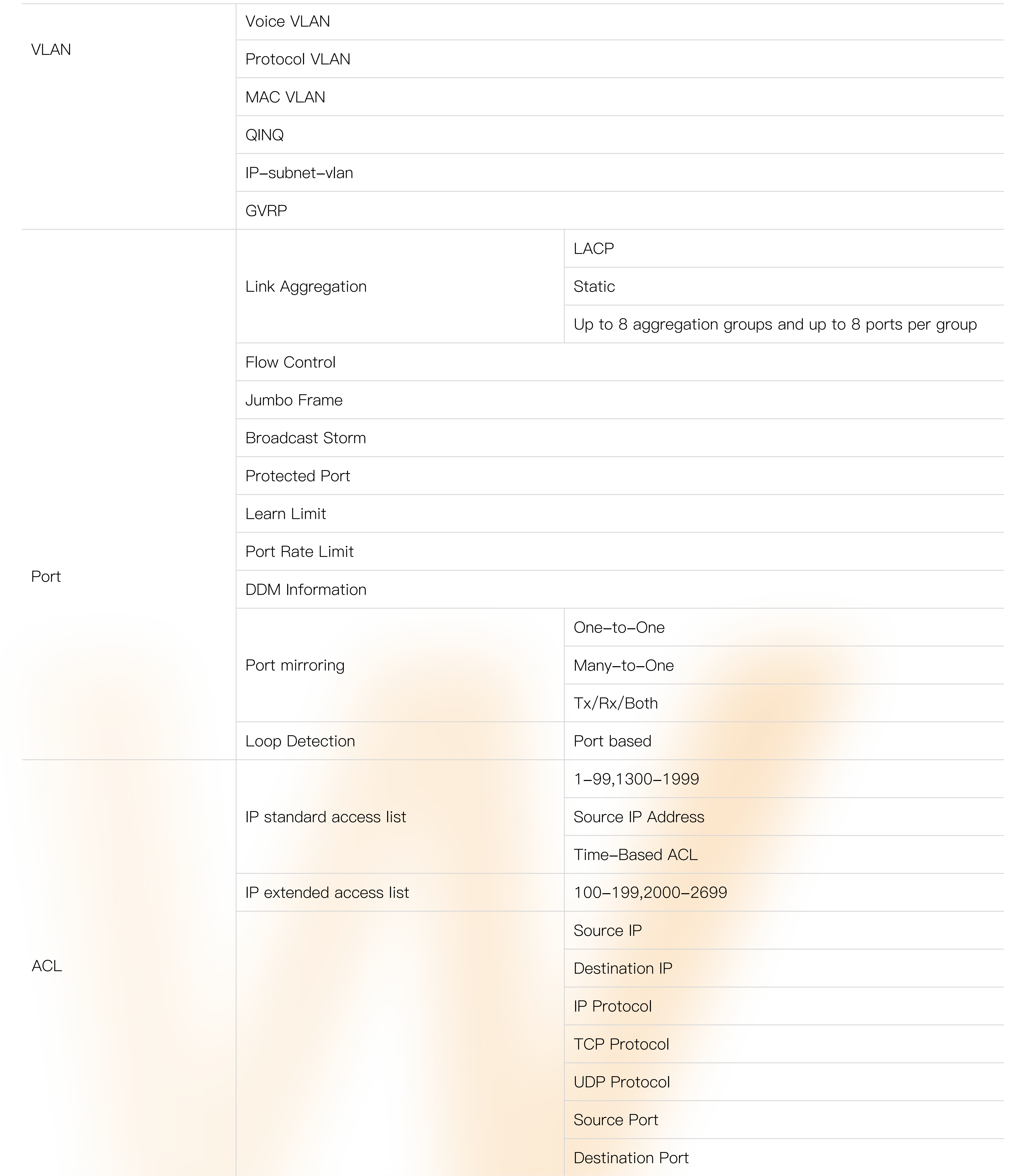

VLAN |
VLAN Group（Max 4K VLAN Groups） |
||
|
802.1Q Tagged VLAN |
|||
|
Voice VLAN |
|||
|
Protocol VLAN |
|||
|
MAC VLAN |
|||
|
QINQ |
|||
|
IP-subnet-vlan |
|||
|
GVRP |
|||
|
Port |
Link Aggregation |
LACP |
|
|
Static |
|||
|
Up to 8 aggregation groups and up to 8 ports per group |
|||
|
Flow Control |
|||
|
Jumbo Frame |
|||
|
Broadcast Storm |
|||
|
Protected Port |
|||
|
Learn Limit |
|||
|
Port Rate Limit |
|||
|
DDM Information |
|||
|
Port mirroring |
One-to-One |
||
|
Many-to-One |
|||
|
Tx/Rx/Both |
|||
|
Loop Detection |
Port based |
||
|
ACL |
IP standard access list |
1-99,1300-1999 |
|
|
Source IP Address |
|||
|
Time-Based ACL |
|||
|
IP extended access list |
100-199,2000-2699 |
||
|
|
Source IP |
||
|
IP Protocol |
|||
|
TCP Protocol |
|||
|
UDP Protocol |
|||
|
Source Port |
|||
|
Destination Port |
|||
|
Time-Based ACL |
|||
|
TCP Control Flag （fin syn rst psh ack urg） |
|||
|

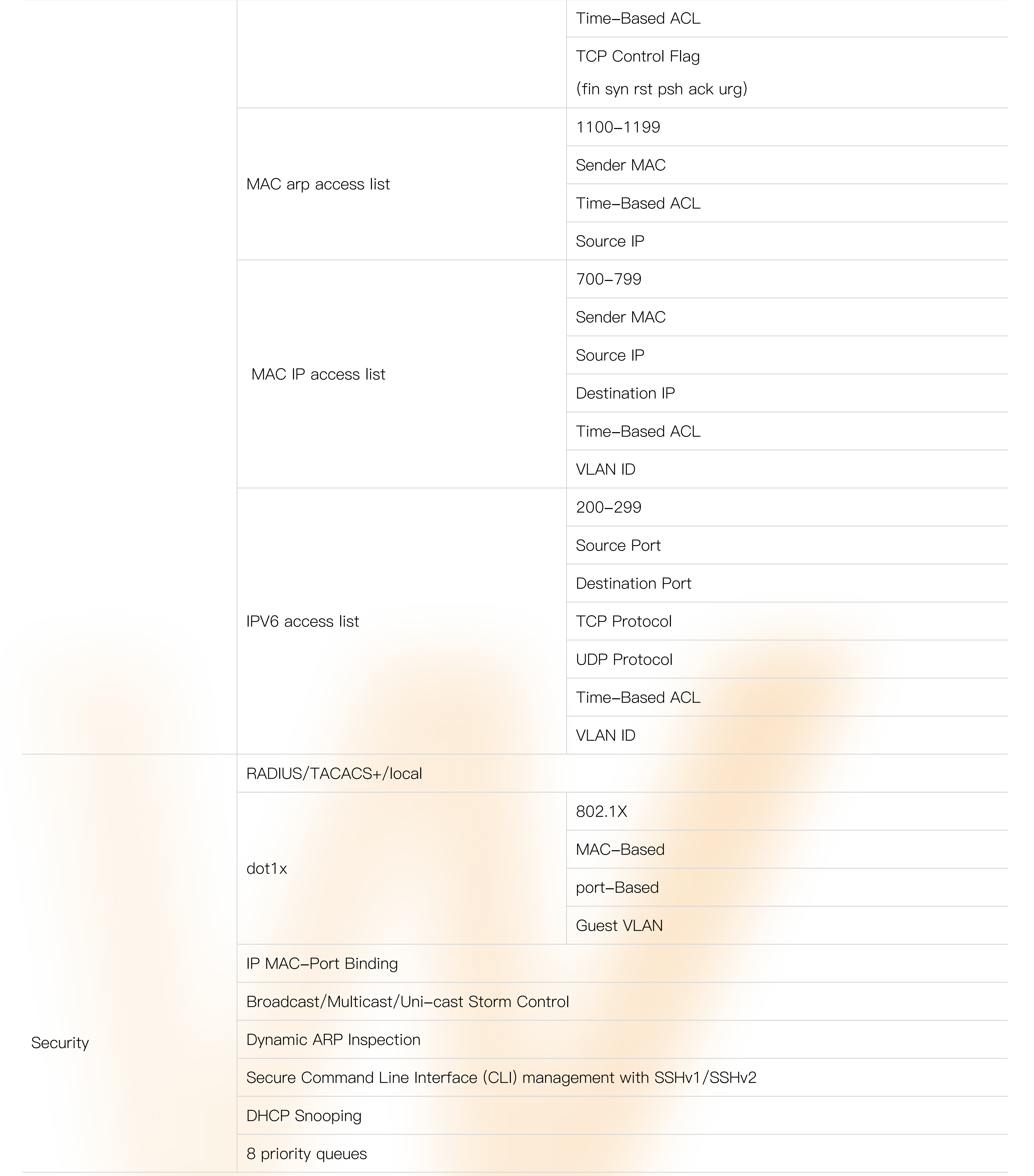

MAC arp access list |
1100-1199 |
||
|
Sender MAC |
|||
|
Time-Based ACL |
|||
|
Source IP |
|||
|
MAC IP access list |
700-799 |
||
|
Sender MAC |
|||
|
Source IP |
|||
|
Destination IP |
|||
|
Time-Based ACL |
|||
|
VLAN ID |
|||
|
IPV6 access list |
200-299 |
||
|
Source Port |
|||
|
Destination Port |
|||
|
TCP Protocol |
|||
|
UDP Protocol |
|||
|
Time-Based ACL |
|||
|
VLAN ID |
|||
|
Security |
|||
|
dot1x |
802.1X |
||
|
MAC-Based |
|||
|
port-Based |
|||
|
Guest VLAN |
|||
|
IP MAC-Port Binding |
|||
|
Broadcast/Multicast/Uni-cast Storm Control |
|||
|
Dynamic ARP Inspection |
|||
|
Secure Command Line Interface (CLI) management with SSHv1/SSHv2 |
|||
|
DHCP Snooping |
|||
|

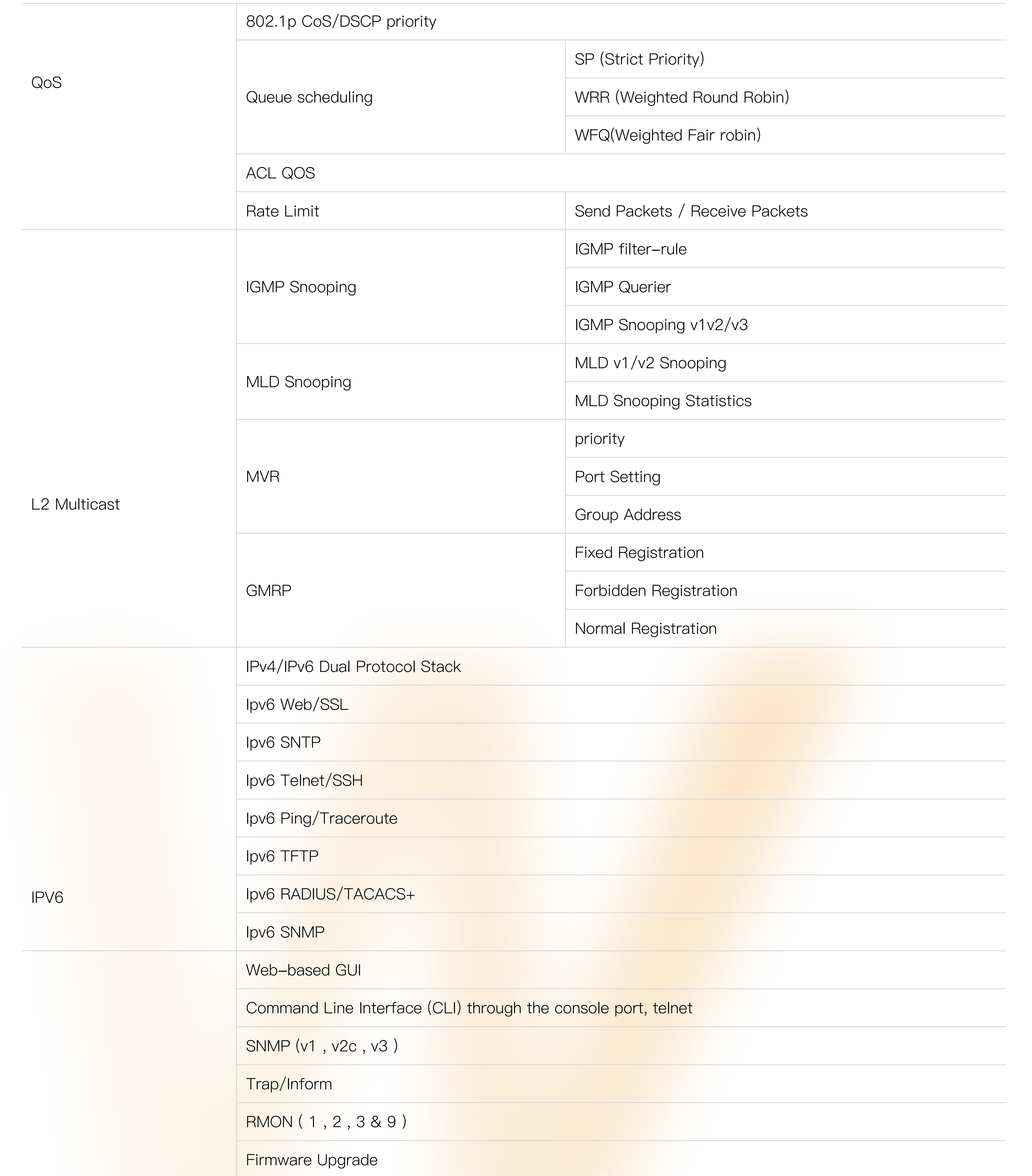

QoS |
8 priority queues |
||
|
802.1p CoS/DSCP priority |
|||
|
Queue scheduling
|
SP (Strict Priority) |
||
|
WRR (Weighted Round Robin) |
|||
|
WFQ(Weighted Fair robin) |
|||
|
ACL QOS |
|||
|
Rate Limit |
Send Packets / Receive Packets |
||
|
L2 Multicast |
IGMP Snooping |
IGMP filter-rule |
|
|
IGMP Querier |
|||
|
IGMP Snooping v1v2/v3 |
|||
|
MLD Snooping |
MLD v1/v2 Snooping |
||
|
MLD Snooping Statistics |
|||
|
MVR |
priority |
||
|
Port Setting |
|||
|
Group Address |
|||
|
GMRP |
Fixed Registration |
||
|
Forbidden Registration |
|||
|
Normal Registration |
|||
|
IPV6 |
IPv4/IPv6 Dual Protocol Stack |
||
|
Ipv6 Web/SSL |
|||
|
Ipv6 SNTP |
|||
|
Ipv6 Telnet/SSH |
|||
|
Ipv6 Ping/Traceroute |
|||
|
Ipv6 TFTP |
|||
|
Ipv6 RADIUS/TACACS+ |
|||
|
Ipv6 SNMP |
|||
|
Management |
Web-based GUI |
||
|
Command Line Interface (CLI) through the console port, telnet |
|||
|
SNMP (v1 , v2c , v3 ) |
|||
|
Trap/Inform |
|||
|
RMON ( 1 , 2 , 3 & 9 ) |
|||
|
Firmware Upgrade |
|||
|
Configuration Export/import |
|||
|
System Log |
|||
|
LLDP ( IEEE802.1AB) |
|||
|
LLDP- MED |
|||
|
UDLD |
|||
|
DNS Client |
|||
|
Traceroute |
|||
|
NDP/NTDP |
|||
|
Fiber Module |
|||
|
Password Recovery |
|||
|
CPU Monitoring |
|||
|
Ping |
|||
|
SNTP ( RFC2030) |
|||
|
Advanced Features |
DHCP server |
||
|
static route |
|||
|
ztp |
|||
|
Certfication |
CE , FCC , RoHS |
||
|
Environment |
Operating Temperature: 0–40 ℃ |
||
