WI-PMS552F
48-port Gigabit layer2+ managed PoE switch, 4*10G SFP+ slots.
48*802.3af/at PoE ports, total power supply 565W.
Support static router, DHCP server.
Link Aggregation,enabling bandwidth superposition and equalization.
multiple security strategies to protect your network.
Web, CLI (Console Port, Telnet, SSH), SNMP and RMON, bringing powerful management capabilities.
|
Model |
WI-PMS552F |
|

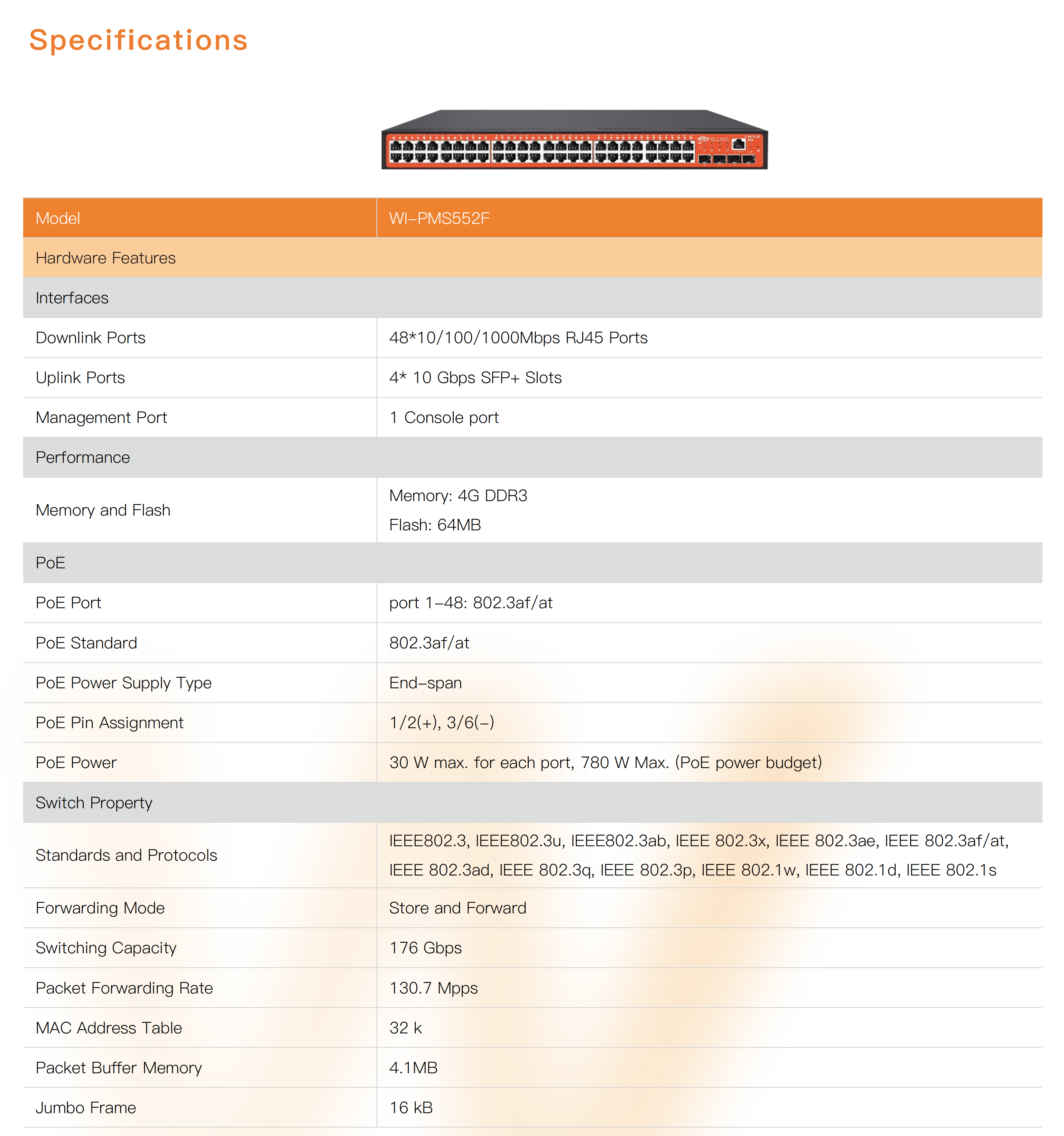

Hardware Specifications |
|
|
Interface |
48x10/100/1000Mbps PoE+ Ports
1xConsole Port
4x10G SFP Slots
|
|
Port Standard |
IEEE 802.3
IEEE 802.3u 100BASE-TX
IEEE 802.3ab1000BASE-T
IEEE 802.3x
IEEE 802.3ae: 10 Gigabit Ethernet over fifiber
IEEE 802.3af/at
IEEE 802.3ad
IEEE 802.3q、IEEE 802.3q/p
IEEE 802.1w、IEEE 802.1d、IEEE 802.1S
|
|
PoE Standard |
802.3af/at |
|
PoE Ports |
48, up to 30W per port |
|
PoE Power Budget |
565W |
|
Power Supply |
Built-in switching power supply: AC 100~240V 50/60HZ |
|
Power Consumption |
Full loading without PoE ≤ 35W |
|
Switching Capacity |
176 Gbps |
|
Packet Forwarding Rate |
184.64Mpps |
|
Jumbo Frame |
16kB |
|
MAC Address Table |
16K |
|
Fan Quantity |
2 |
|
DDR |
2G DDR3 1333MHz |
|
FLASH |
64M |
|
DRAM |
256M |
|
Dimensions( W x D x H ) |
Product Size: 440mm*360mm*45mm
Package dimensions: 553mm*403mm*95mm
|
|
Net weight/gross weight |
5.6kg/6.45kg |
|
Protection Level |
Port lightning protection：4kV 8/20us
Protection class：IP30
|
|
Transmission Method |
Store— Forward |
|
Installation |
Rack- Mounted |
|
Environment |
Operating temperature/humidity：-20～+55°C；5%～90% RH no condensation
Storage temperature/humidity：-40～+75°C；5%～95% RH no condensation
|
|
Certification |
CE, FCC, RoHSUACK |
|
Spanning Tree
|
802.1d STP |
|
802.1w RSTP |
|
|
802.1s MSTP |
|
|

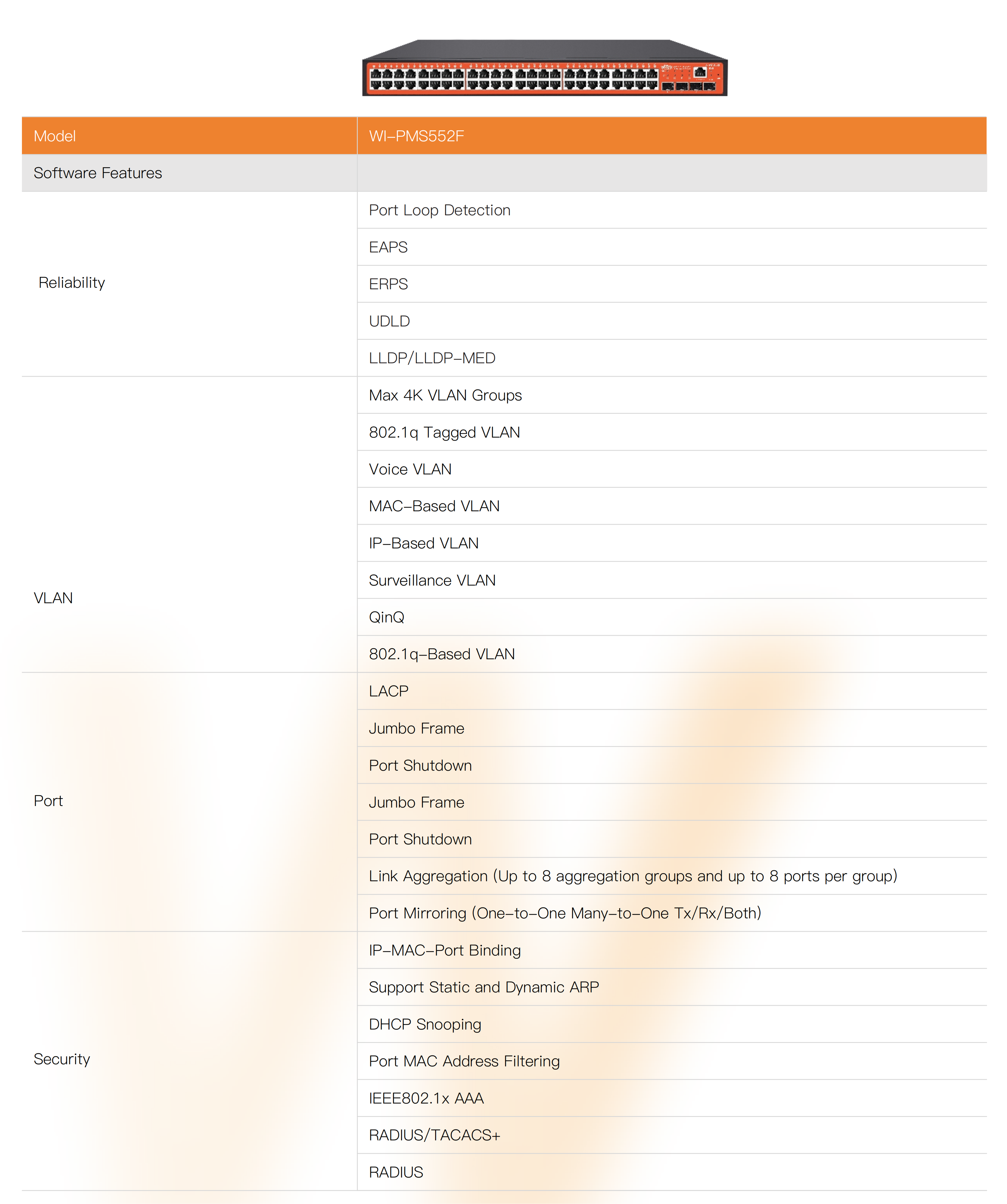

Reliability
|
Port Loop Detection |
|
EAPS |
|
|
ERPS |
|
|
LLDP/LLDP-MED |
|
|
UDLD |
|
|
VLLP |
|
|
VLAN
|
Max 4K VLAN Groups |
|
802.1q-based VLAN |
|
|
MAC address based VLAN |
|
|
IP address based VLAN |
|
|
Protocol-based VLAN |
|
|
Voice VLAN |
|
|
QinQ |
|
|
VLAN mapping |
|
|
Port-based VLAN |
|
|
Port
|
Close and open ports |
|
Port auto-negotiation |
|
|
broadcast storm control |
|
|
port mirroring |
|
|
port speed limit |
|
|
Link aggregation (up to 32 aggregation groups are supported, each group supports up to 8 ports) |
|
|
Port isolation |
|
|
Jumbo Frame |
|
|
LACP |
|
|

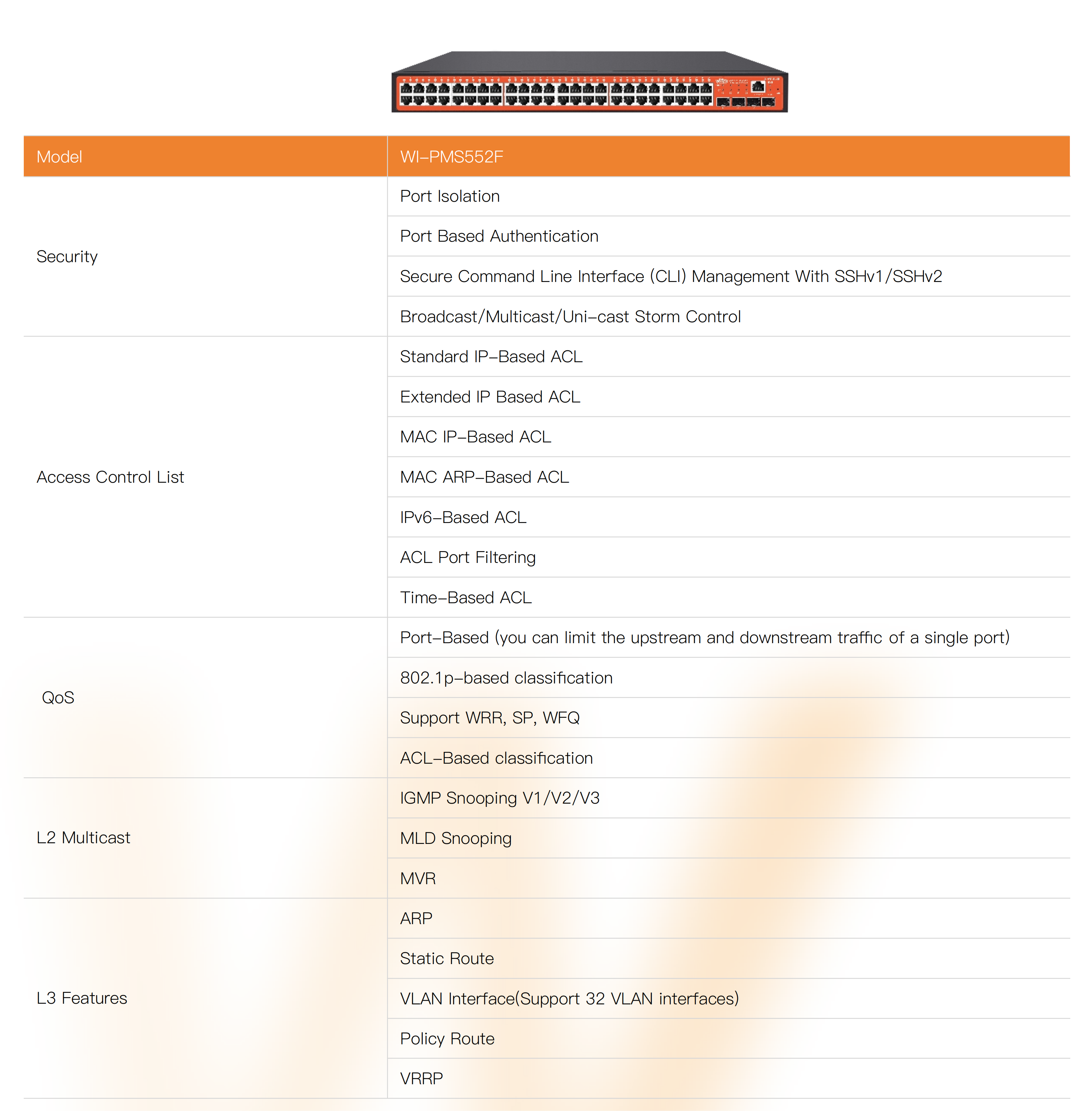

Security
|
Support opening and closing TELNET, WEB and SNMP services
Support TELNET, WEB and SNMP services to bind with standard IP ACL
|
|
CPU protection |
|
|
Support 802.1x protocol
Support RADIUS protocol
Support authentication, authorization and accounting through RADIUS server
Supports port-based and MAC-based 802.1x
|
|
|
IP MAC address binding |
|
|
Prevent ARPSpoofing |
|
|
DHCP Snooping(Supportfixed port connection to DHCP server, prevent
private connection to DHCP server)
|
|
|
Access Control List
|
Standard IP based ACL |
|
ACL based on extended IP |
|
|
ACL based on MAC IP |
|
|
ACL based on MAC ARP |
|
|
ACL port filtering |
|
|
time-based ACL |
|
|
QoS
|
8 priority queues |
|
Support WRR, RR, WDRR, SP scheduling mode |
|
|
Based on 802.1p classification |
|
|
DSCP-based classification |
|
|
ACL-based classification |
|
|
L2 Multicast
|
Support static multicast MAC address |
|
Support IGMP SNOOPING v1/v2/v3 |
|
|
Support for IGMP Querier |
|
|
Support IGMP Snooping filtering |
|
|
MVR |
|
|
GMRP |
|
|

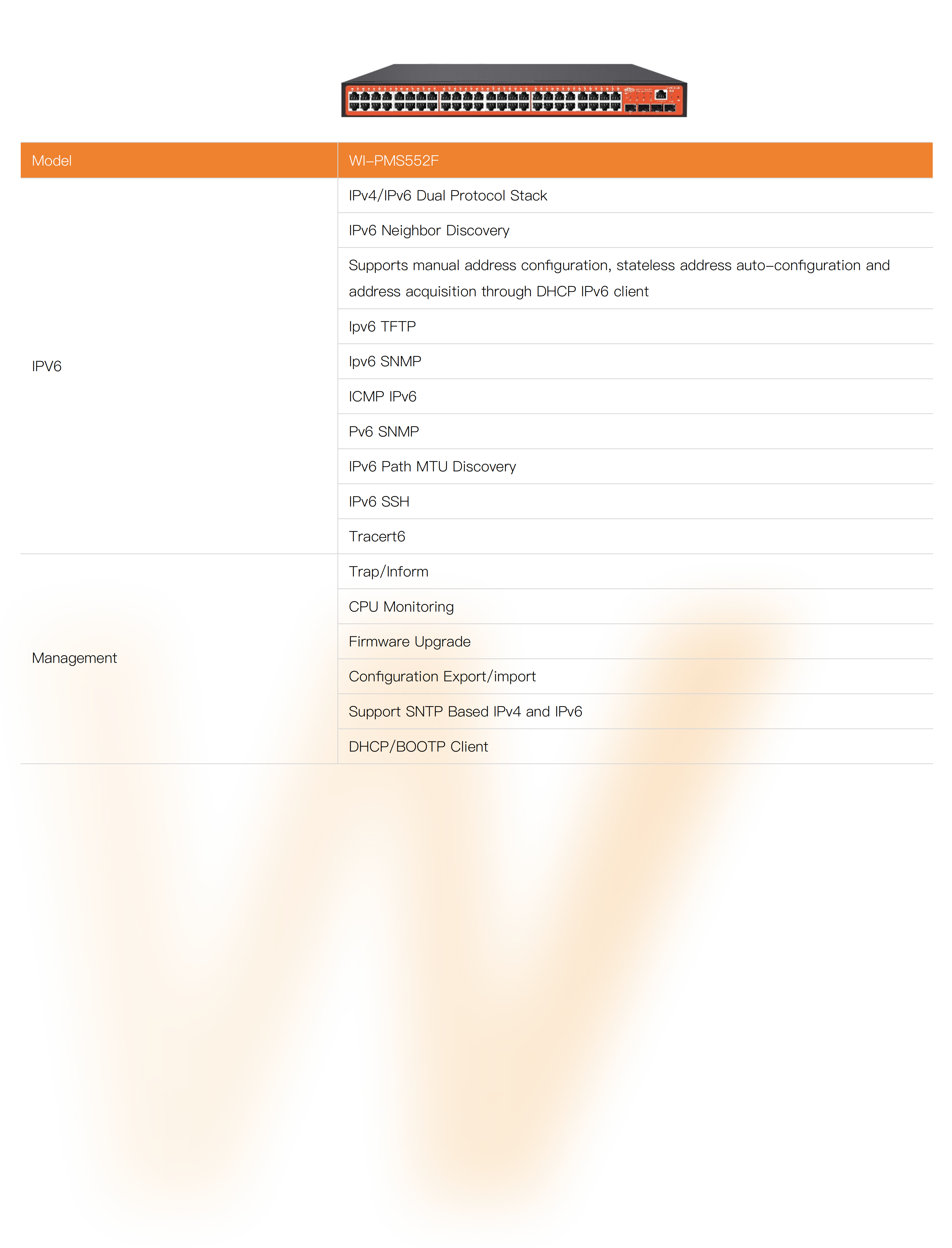

IPv6
|
IPv4/IPv6 Dual Protocol Stack |
|
Support manual address configuration |
|
|
Supports manual address configuration and stateless address auto-configuration |
|
|
IPv6 Neighbor Discovery |
|
|
ICMPv6 |
|
|
IPv6 Path MTU Discovery |
|
|
L3
|
Static ARP |
|
Static Route(Support static route based on IPv4 and IPv6) |
|
|
VLAN Interface(Support 32 VLAN interfaces) |
|
|
Policy Route |
|
|
VRRP |
|
|
DHCP
|
DHCP Client |
|
DHCP Snooping |
|
|
DHCP Relay |
|
|
DHCP Server |
|
|
DHCP option 82 |
|
|
Management
|
CLI Management(Support Console, Telnet and SSH) |
|
WEB Management |
|
|
SNMP Management:
Support SNMP v1, v2c, v3
Support SNMP TRAP
Support lots of standard and private MIBs
|
|
|
TACACS+:
support switch authentication via TACACS+ server remote username and password
Support password encryption in PAP and CHAP mode
Support TACACS+ server to authorize the switch's commands
|
|
|
Log Management: Support local log management
Support SYSLOG
|
|
|
RMON:Support RMON 1, 2, 3 and 9 groups |
|
|
Configuration file:
Support uploading and downloading configuration files
Support TFTP transmission based on IPv4 and IPv6
|
|
|
Upgrade software: Support TFTP transmission and WEB upgrade |
|
|
Clock Management: Support local clock management
Support SNTP
|
|
