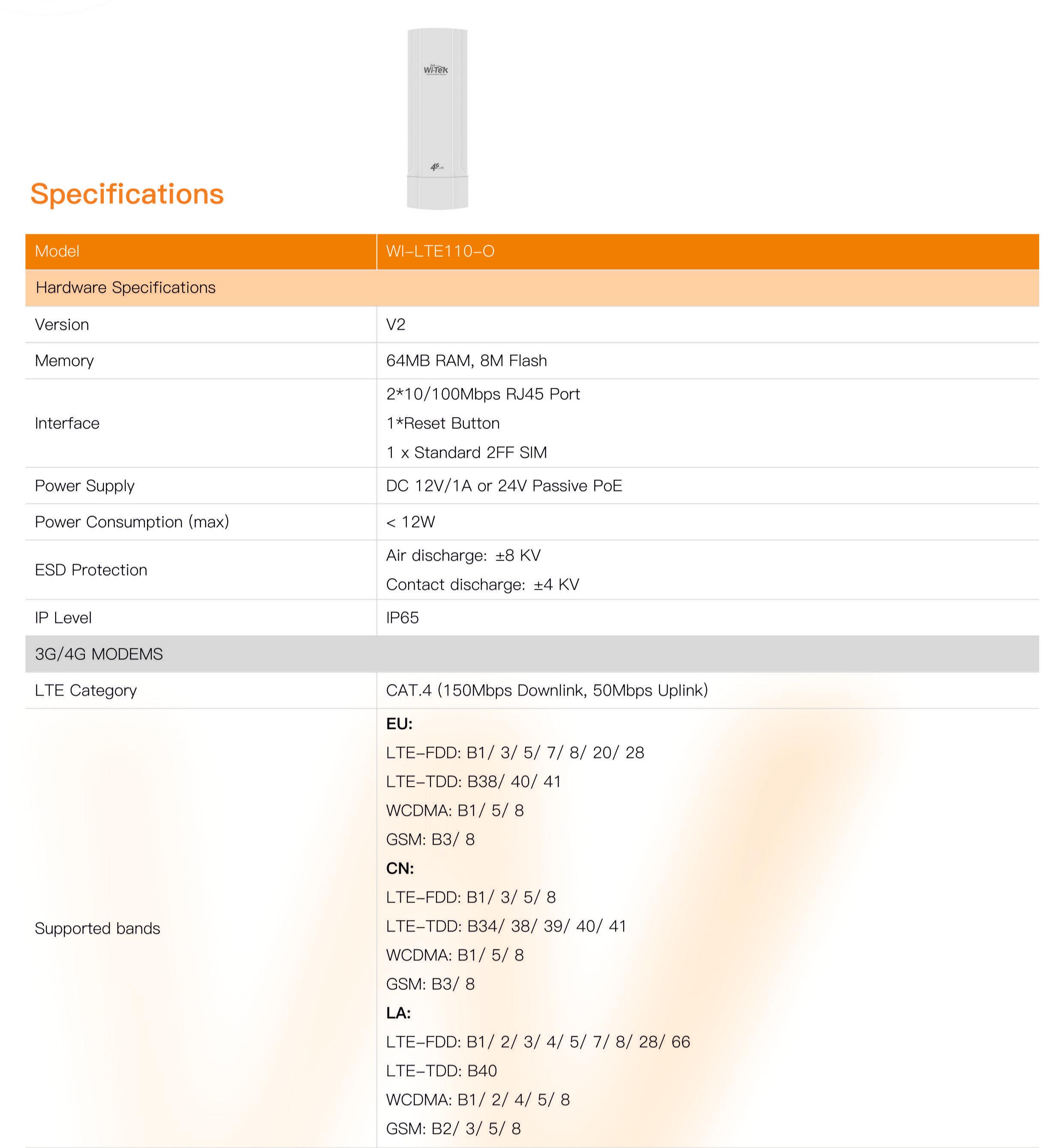

Model

WI-LTE110-O

Interface

(1)10/100M Base-T LAN Ethernet port

(1)10/100M Base-T WAN Ethernet port

Signal Rate

300 Mbps at 2.4 GHz

Wi-Fi Antenna

2dBi

Power Supply

DC 12V/1A or 24V Passive PoE

Power Consumption

< 11W

External buttons

reset button (long press for 8 seconds

to restore the factory default configuration)

Transmit Power

22dBm

LTE/3G/2G Bands

EU:

LTE FDD: B1/B3/B5/B7/B8/B20/

LTE TDD: B40

WCDMA: B1/B5/B8

GSM: B3/B8

CN:

LTE FDD：B1/B3/B5/B8
LTE TDD: B34/B38/B39/B40/B41
WCDMA: B1/B5/B8
GSM: B3/B8

LTE TDD: B34/B38/B39/B40/B41

WCDMA: B1/B5/B8

GSM: B3/B8

LA:

LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28/B66

LTE TDD: B40

WCDMA: B1/B2/B4/B5/B8

GSM: B2/B3/B5/B8

LTE Category

Cate 4

4G/ETH Failover

Yes

Weatherproof Enclosure

IP65

Dimensions

260mm x 100mm x 37mm

Environment

Working Temp: -30 ~ 55°C

Storage Temp: -40 ~70°C

Working Humidity: 10%~90%

non-condensing

Software Features

3G/4G Router, Wireless Router, Eth-First Router, 4G-First Router

DHCP Server, Client

NAT Rules, Port Forwards

Static Routes

DDNS

OpenVPN

SD-LAN

Cloud management
