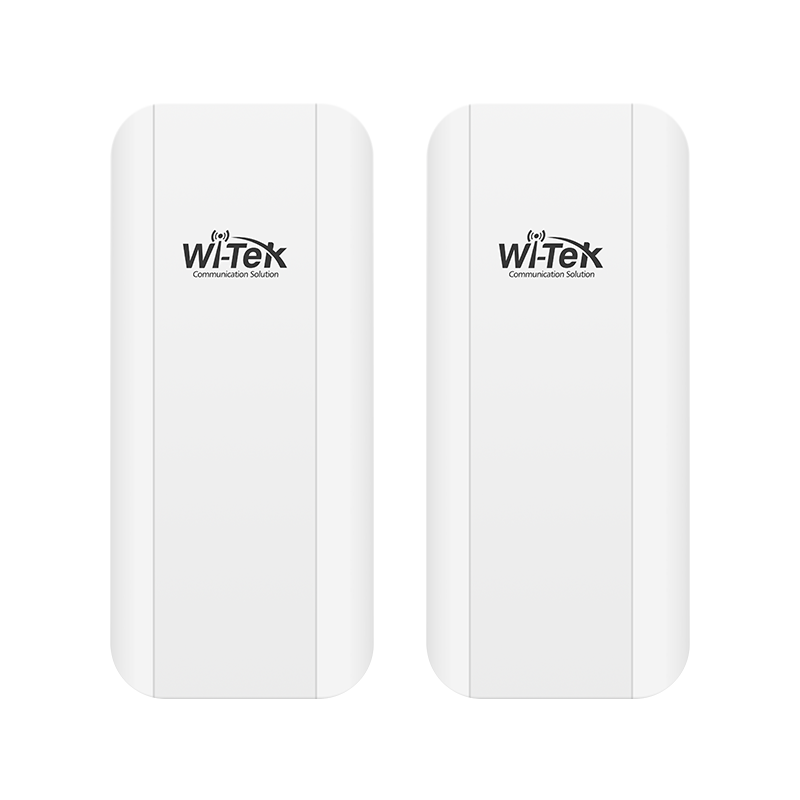

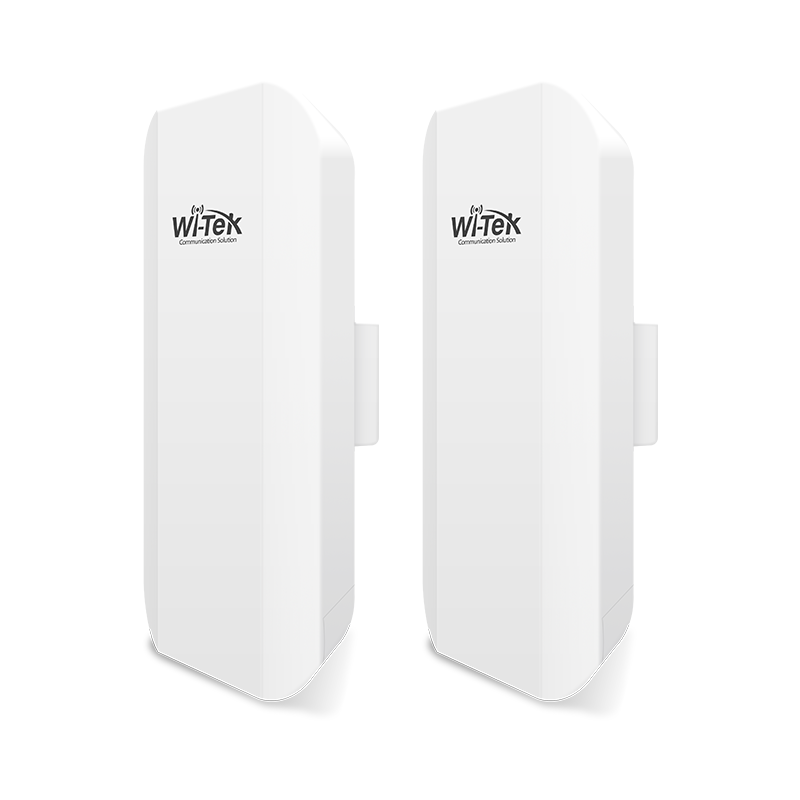

WI-CPE800-KIT (V2)

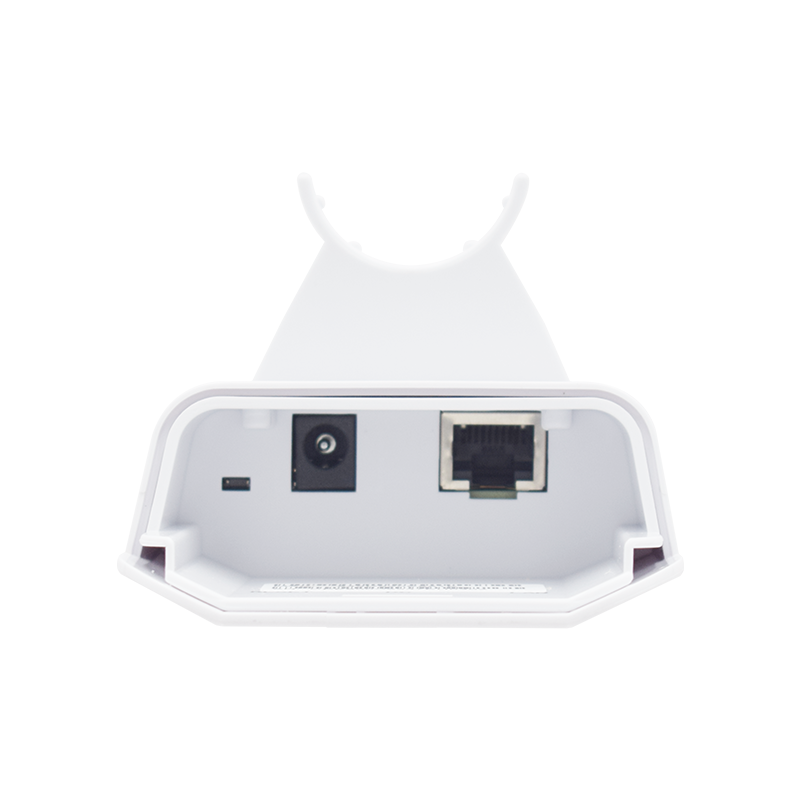

● 1*10/100/1000 Base-T LAN Ethernet port
● 802.3af/at PoE Input

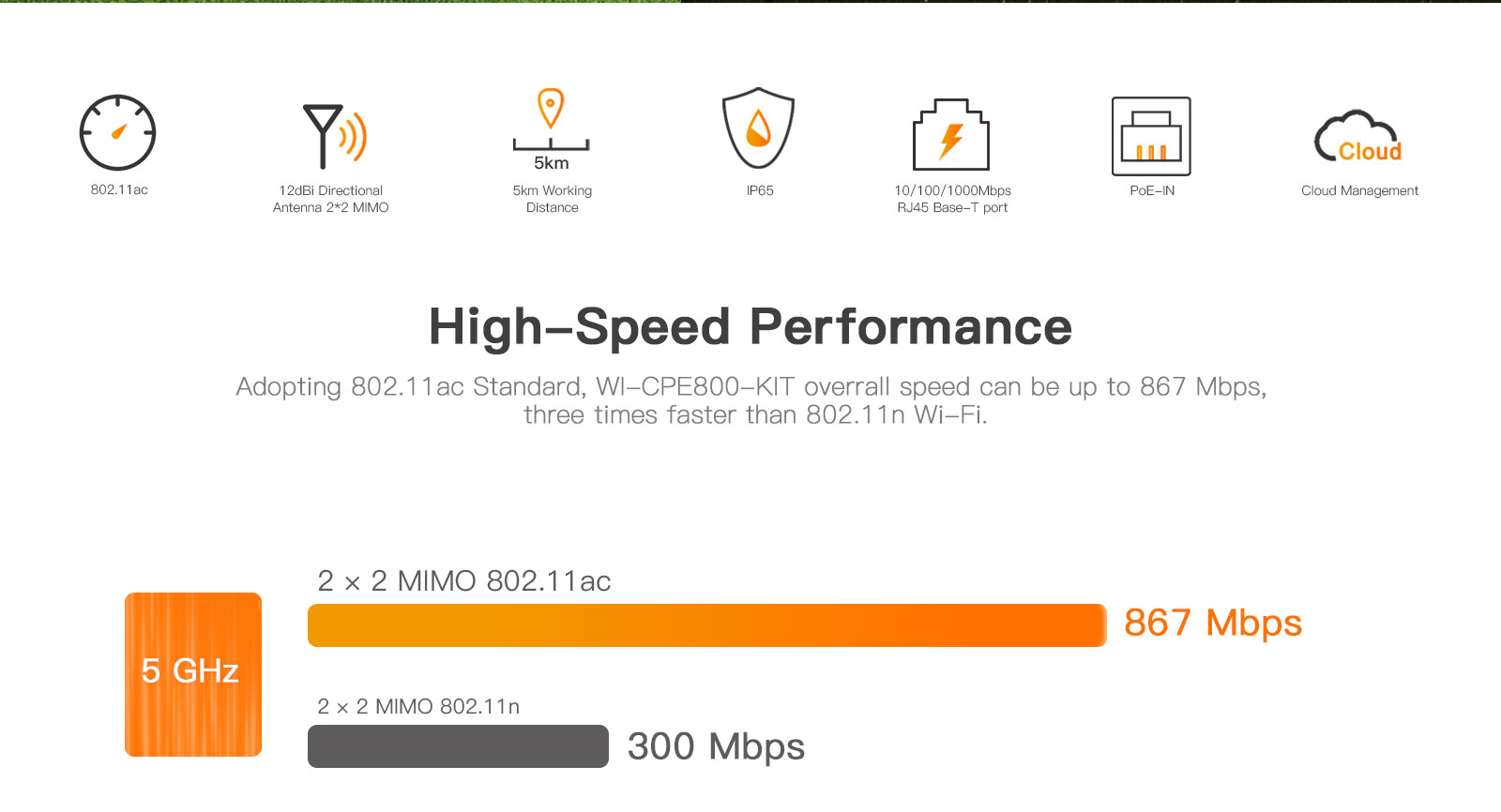

● Wireless speed can be up to 867Mbps with 802.11ac
● Built-in 12dBi 2x2 dual-polarized directional MIMO antenna
● Adjustable transmission power from 0 to 29dBm
● Plug and Play for PTP mode

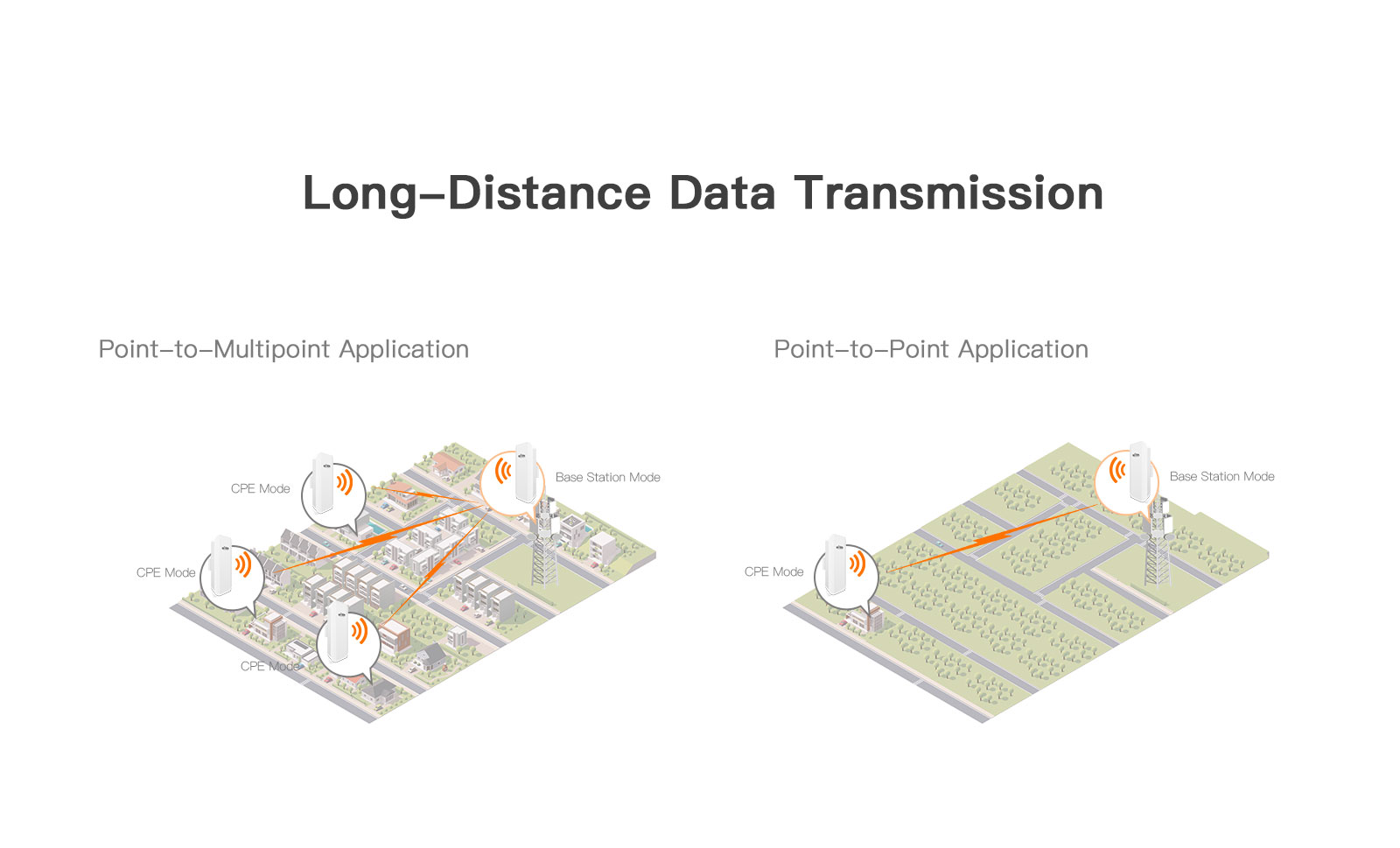

● Long range wireless transmission up to 5km
● IP65 protection level and 8kV ESD protection

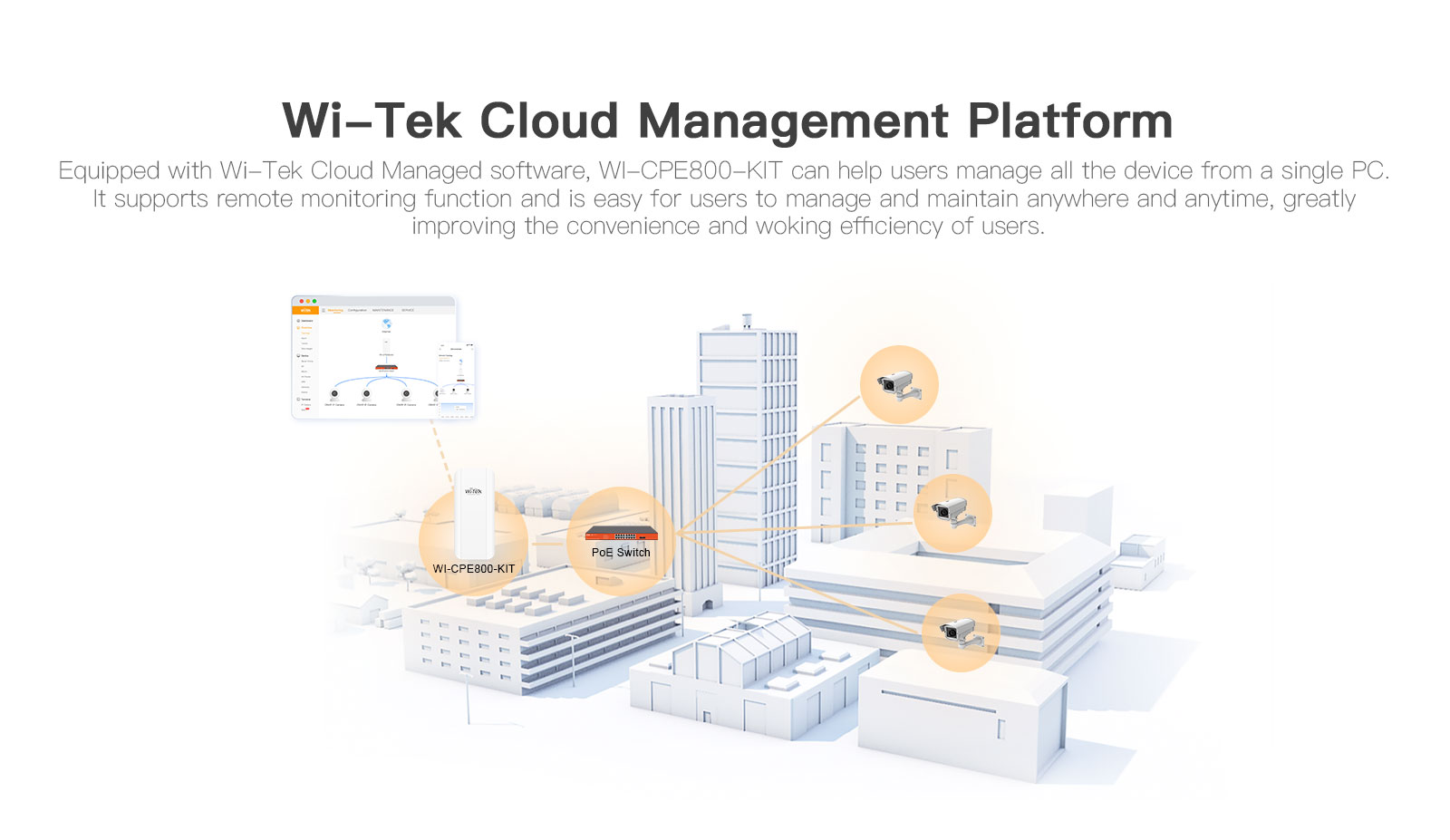

● Centralized Cloud Management Platform

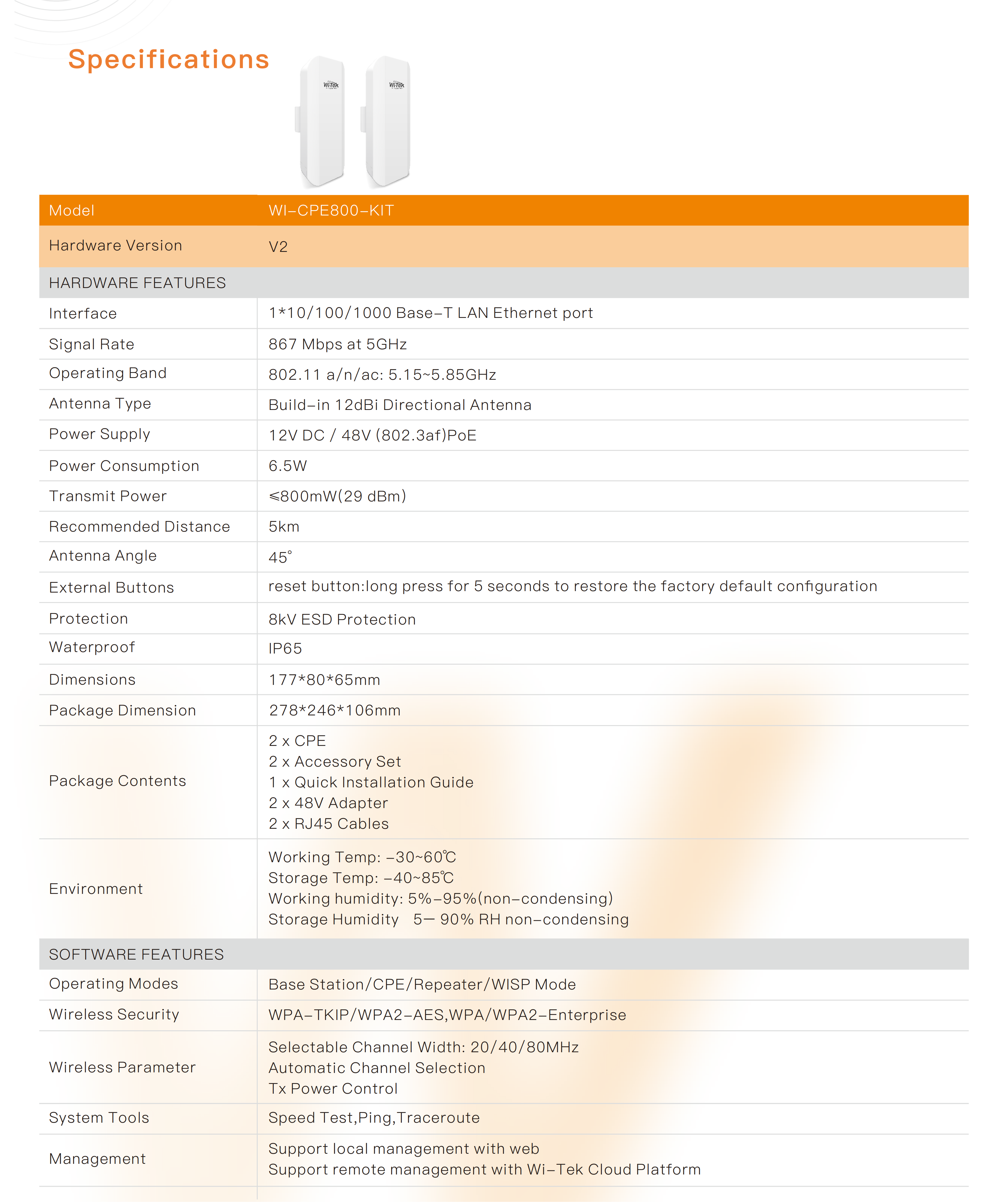

Model

WI-CPE800-KIT

Hardware Version

V2

HARDWARE FEATURES

Interface

1*10/100/1000 Base-T LAN Ethernet port

Signal Rate

867 Mbps at 5GHZ

Operating Band

802.11 a/n/ac: 5.15~5.85GHZ

Antenna Type

Build-in 12dBi Directional Antenna

Power Supply

12V DC / 48V (802.3af/at)PoE

Power Consumption

<6.5W

Transmit Power

≤800mW(29 dBm)

Recommended Distance

5km

Antenna Angle

45°

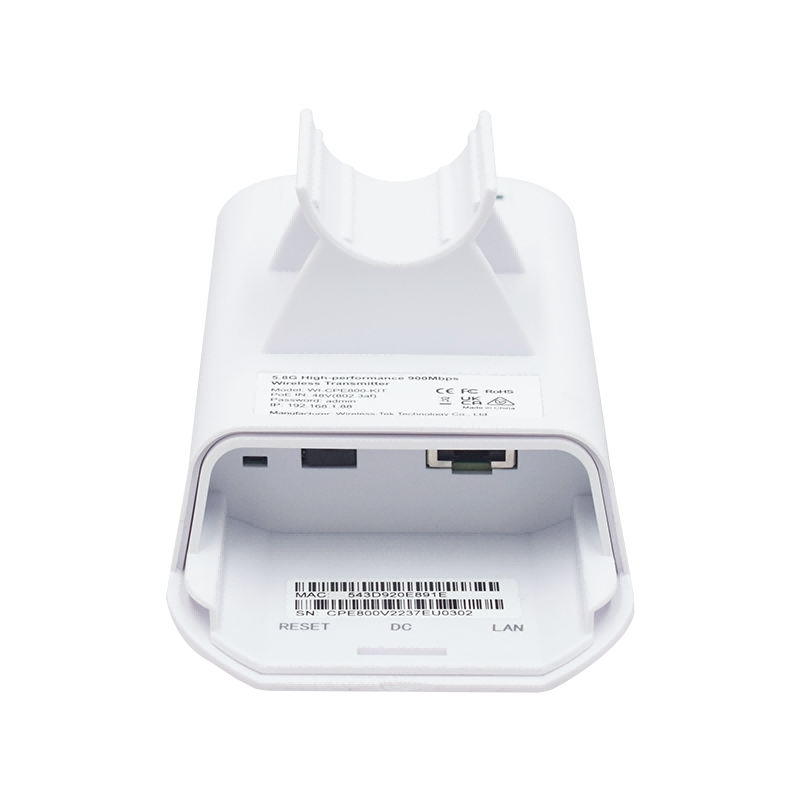

External Buttons

reset button:long press for 5 seconds to restore the factory default configuration

Protection

8KV ESD Protection

Waterproof

IP65

Dimensions

177*80*65mm

Package Dimension

278*246*106mm

Package Contents

2 x CPE

2 x Accessory Set

1 x Quick Installation Guide

2 x 24V Adapter

2 x RJ45 Cables

Environment

Working Temp: -30~60℃

Storage Temp: -40~85℃

Working Humidity: 5%-95%non-condensing

Storage Humidity   5– 90% RH non-condensing

SOFTWARE FEATURES

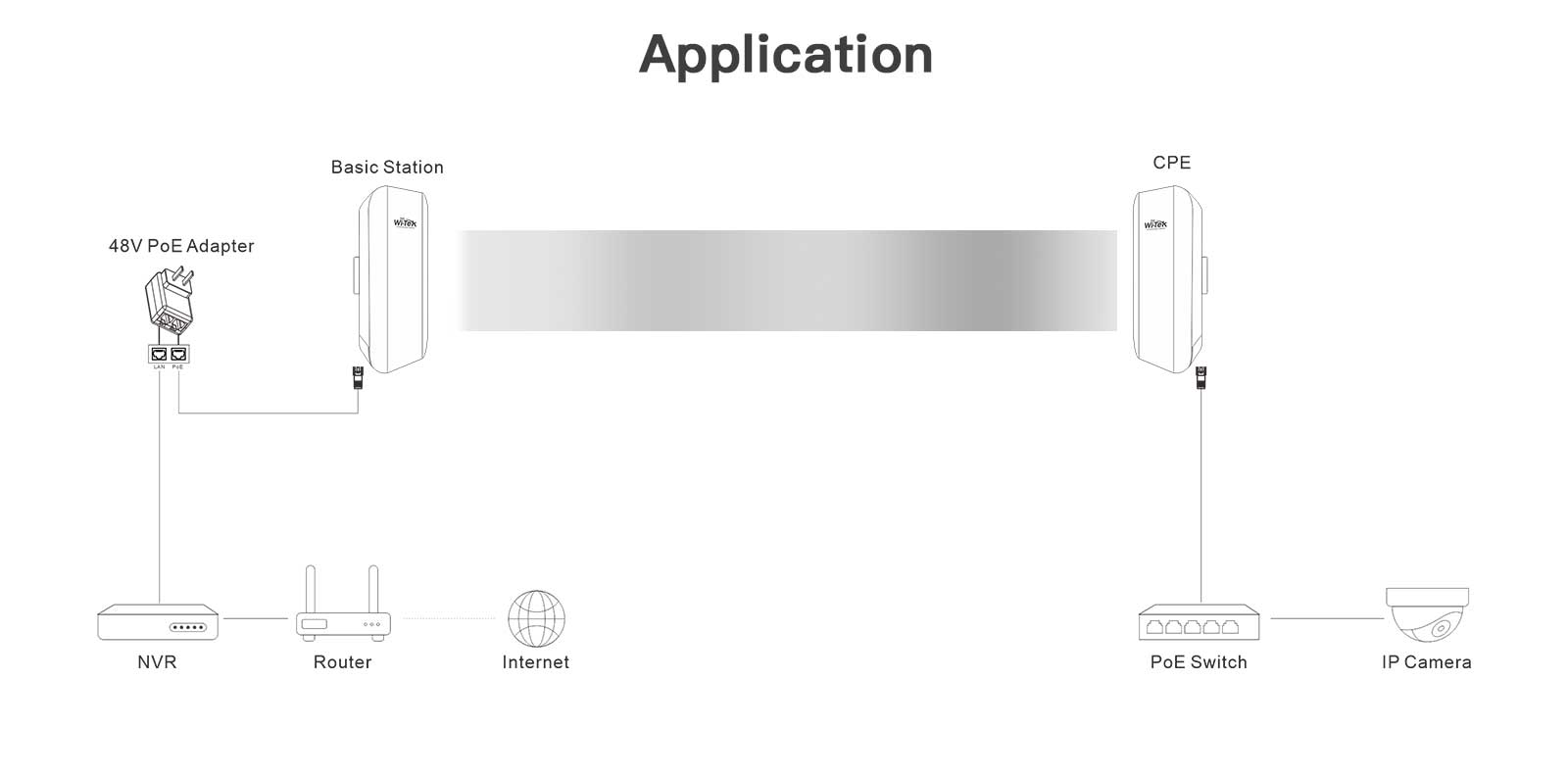

Operating Modes

Base Station/CPE/R epeater/WISP Mode

Wireless Security

WPA-TKIP/WPA2-AES,WPA/WPA2-Enterprise

Wireless Parameter

Selectable Channel Width: 20/40/80MHZ

Automatic Channel Selection

Tx Power Control

System Tools

Speed Test,Ping,Traceroute

Management

Support local management with web

Support remote management with Wi-Tek Cloud Platform
