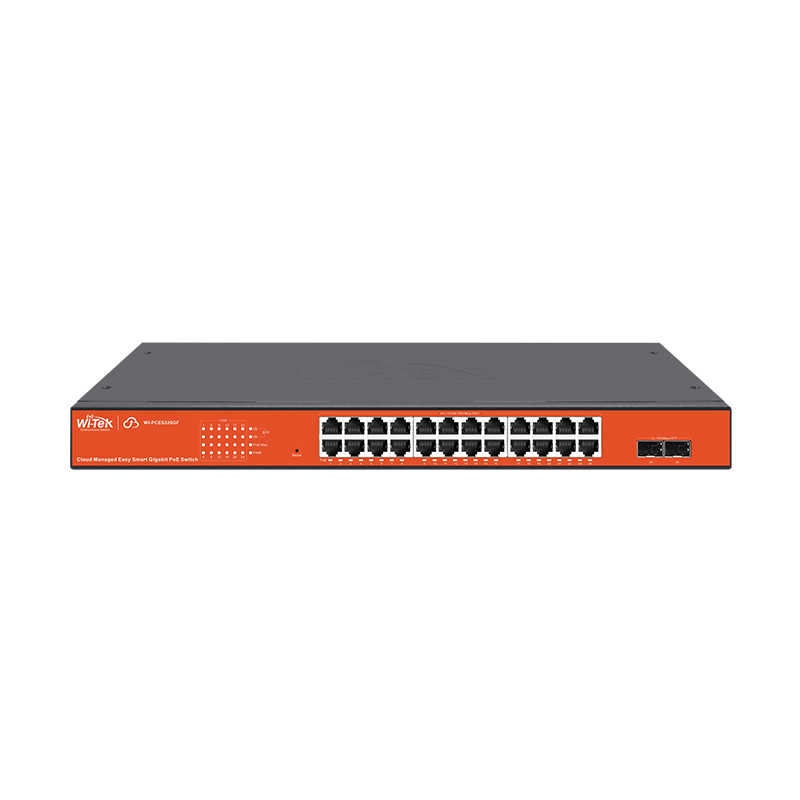

WI-PCES326GF
● 24*10/100/1000Mbps RJ45 Ports 2*1000Mbps SFP Slots
● 24×802.3af/at PoE+ ports, total power supply 370W
● Support Wi-Tek Cloud management, mobile APP remote maintenance
● Support port automatic anti-loop to ensure business continuity
● Support various real-time alarms, even novice can troubleshoot
● Support Onvif protocol to automatically identify IP camera
|

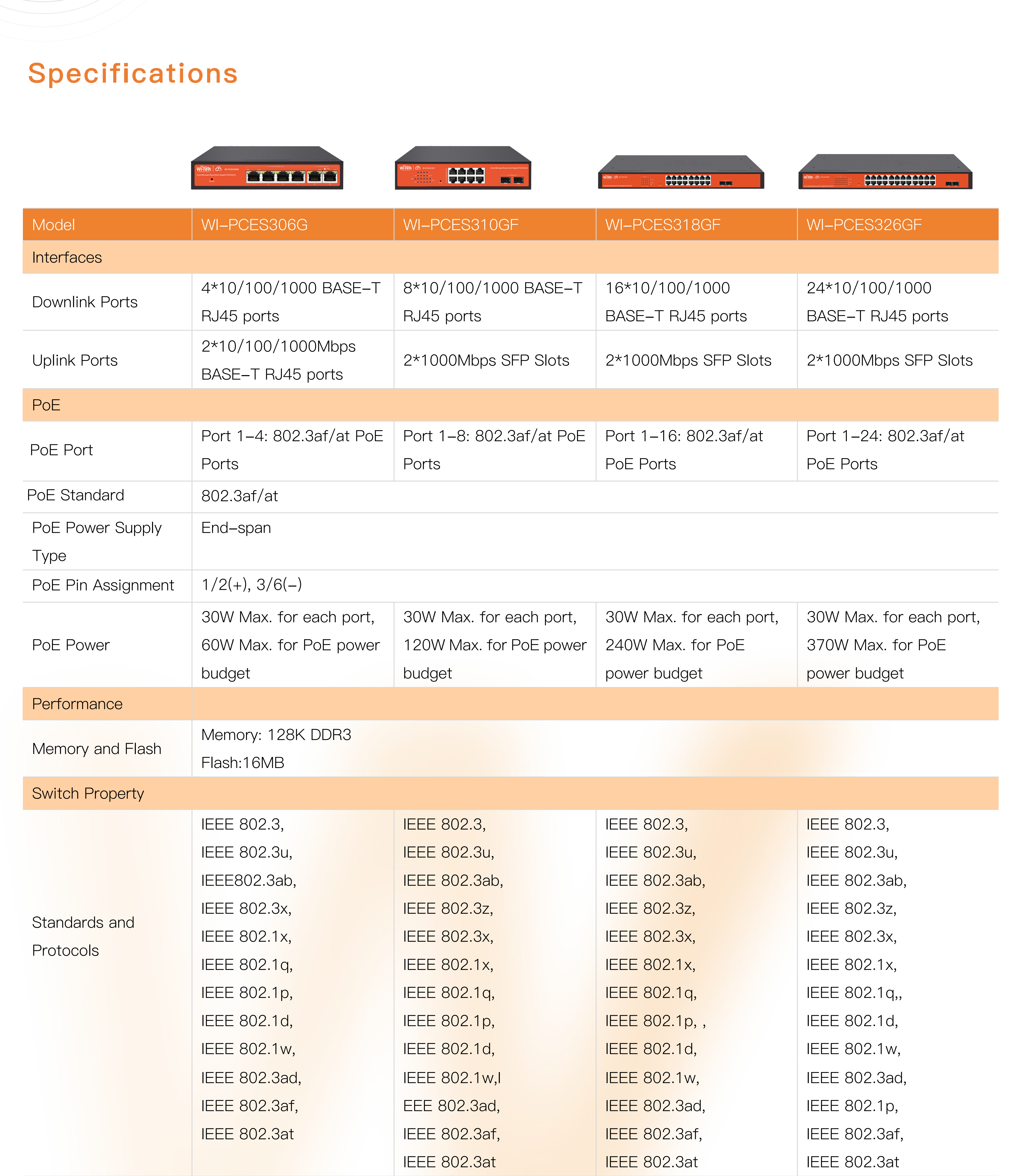

Hardware Specifications |
|
|
Hardware Version |
V1 |
|
Interface |
24*10/100/1000Mbps RJ45 Ports 2*1000Mbps SFP Slots |
|
Interface Port Standard |
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x, IEEE 802.1x, IEEE 802.1q, IEEE 802.1p, IEEE 802.1d, IEEE 802.1w, IEEE 802.3ad, IEEE802.3af, IEEE802.3at |
|
Power Supply |
PoE 802.3 af/at |
|
PoE Ports |
24, up to 30W |
|
PoE Power Budget |
370W |
|
Power Supply |
AC 100-240V 50/60Hz 400W |
|
Standby Power Consumption |
115V 60Hz 17.9W 230V 50Hz 19.7W |
|

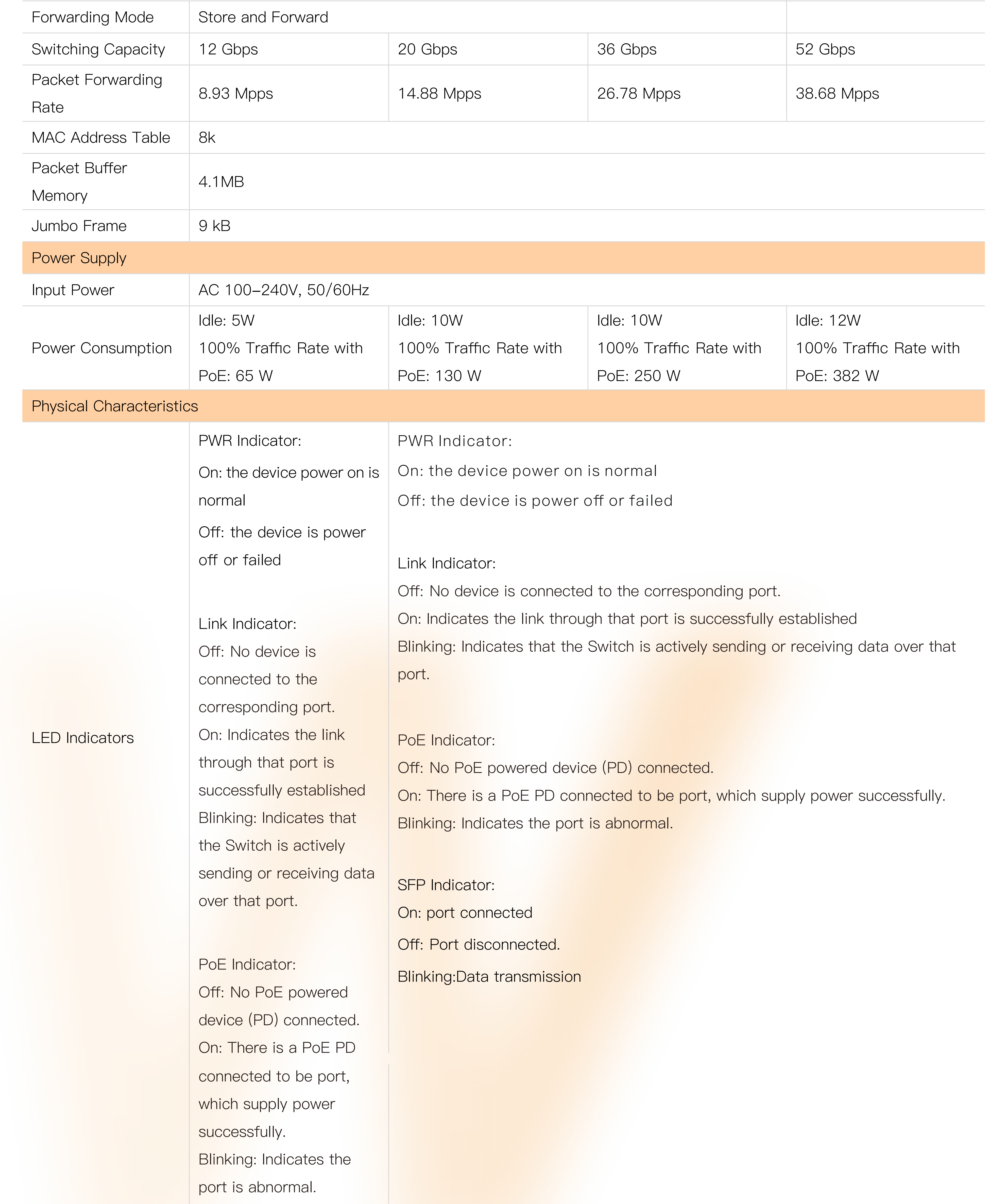

Switching Capacity |
52Gbps |
|
Packet Forwarding Rate |
39.69Mpps |
|
Jumbo Frame |
9216Bytes |
|
MAC Address Table |
8K, Auto-learning, Auto-aging |
|
Fan Quantity |
2Fan |
|
RJ45 PoE Power Supply |
Mode A 1/2(+) 3/6(-) |
|

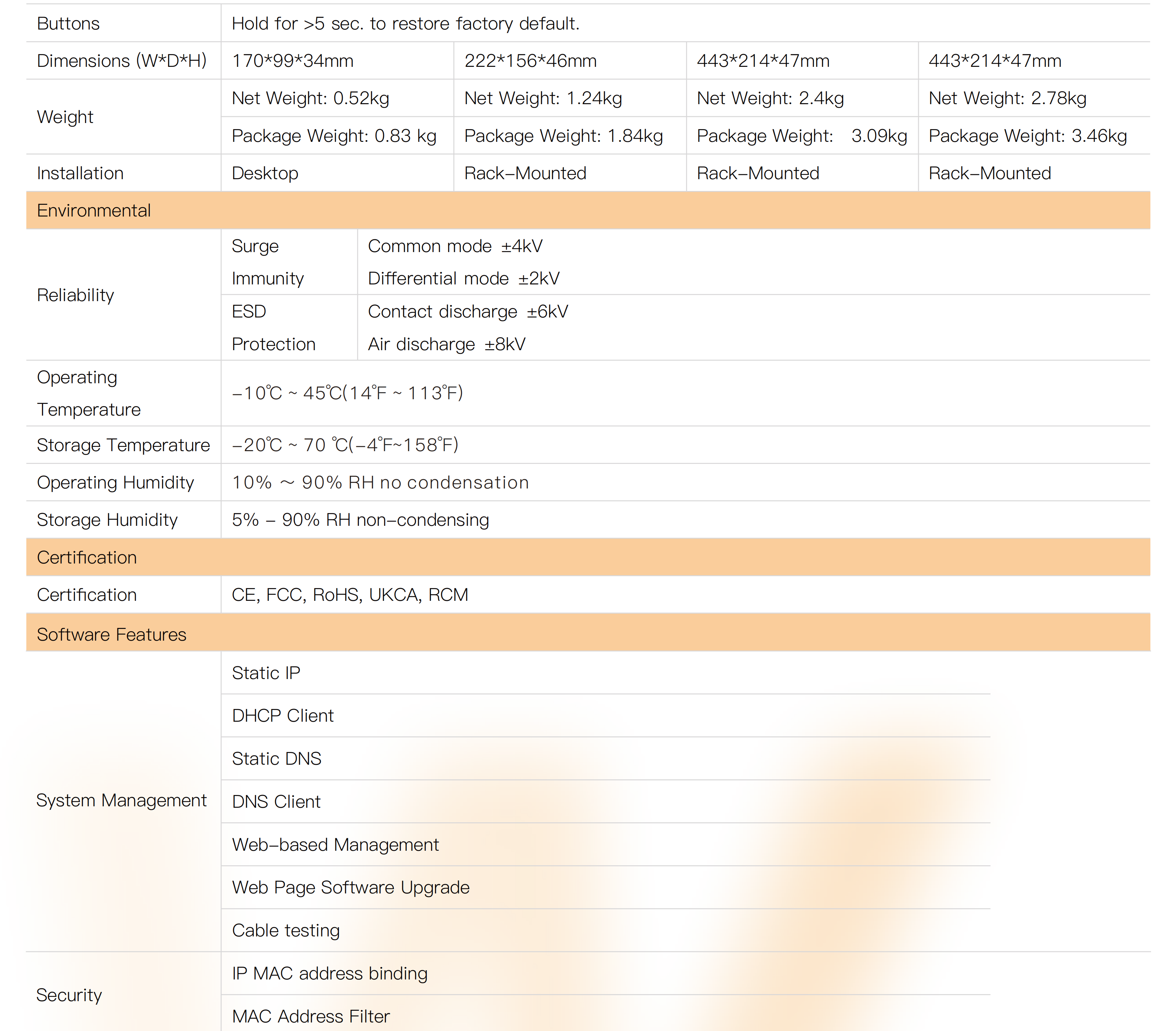

Dimensions( W x D x H ) |
440*207*44mm |
|
LED indicator |
PWR:Power indicator (steady green is normal) 1~24 port:(Data indicator is green) 1~24 port:(PoE indicator is yellow) 25~26 port:(The optical port indicator is normal green) |
|
Protection Level |
Surge Protection: Diffdeferential mode ±2KV, Common mode ±4KV Electrostatic Standard: Contact ±6KV, Air ±8KV Protection class: IP30 |
|
Transmission Method |
Store— Forward |
|
Installation |
Rack- Mounted |
|
Environment |
Operating temperature/humidity: 0°C ~ 40°C; 10%～90% RH no condensation Storage temperature/humidity: -40°C～+70°C; 5%～95% RH no condensation |
|
Software Features |
|
|
System Management |
Static IP |
|
DHCP Client |
|
|
Static DNS |
|
|
DNS Client |
|
|
Web-based Management |
|
|
Telnet |
|
|
WEB page software upgrade |
|
|
Cable Testing |
|
|
Security |
IP MAC address binding |
|
MAC Address Filter |
|
|

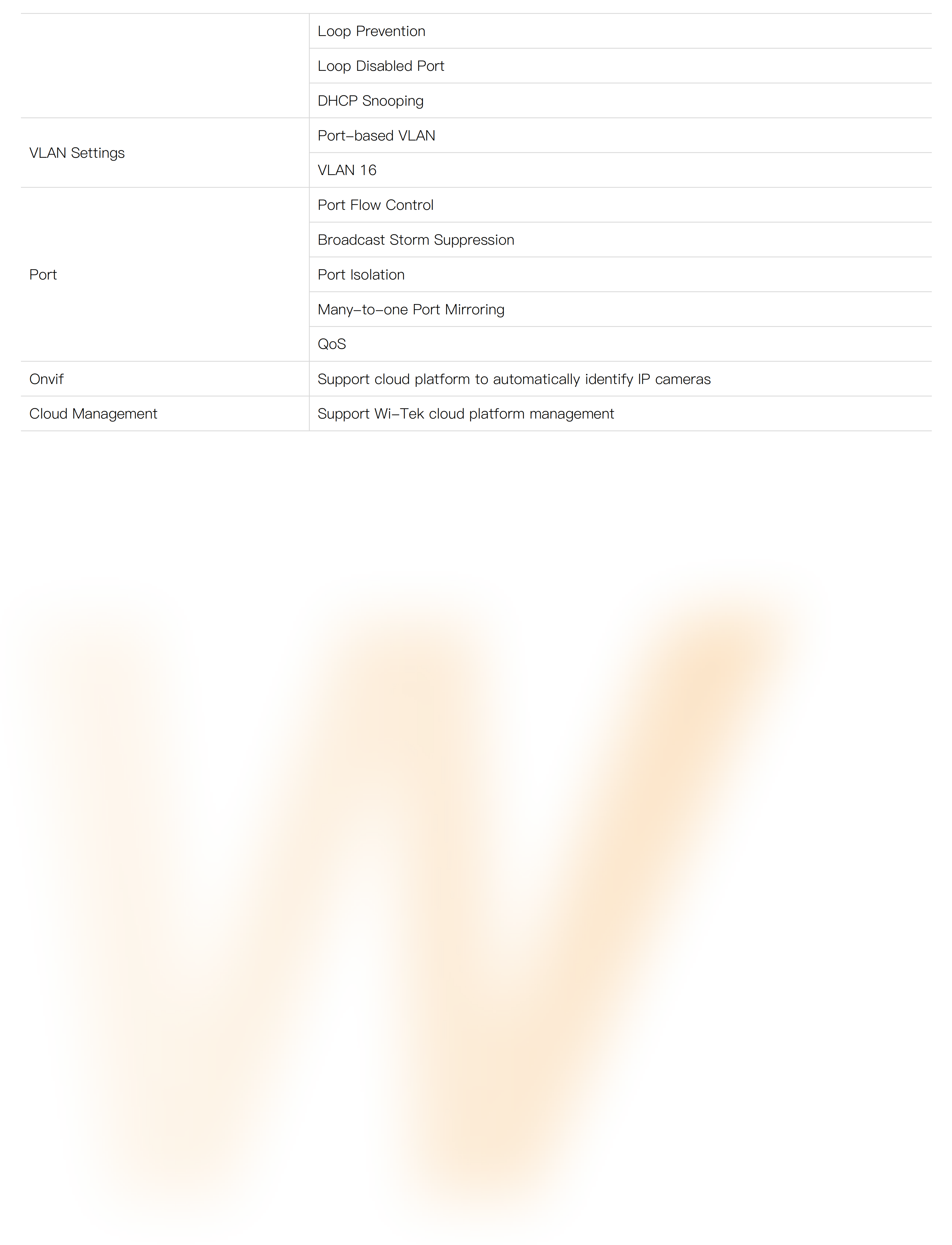

Loop Prevention |
|
|
Loop Disabled Port |
|
|
DHCP Snooping |
|
|
VLAN |
Port-based VLAN |
|
VLAN: 16 |
|
|
Port |
Port Flow Control |
|
Broadcast storm suppression |
|
|
Port Isolation |
|
|
Many-to-one Port Mirroring |
|
|
QoS(Port Speed Limit) |
|
|
PoE |
Enable/disable power supply |
|
Mandatory power supply |
|
|
PD Alive |
|
|
Onvif |
Support cloud platform to automatically identify IP cameras |
|
Cloud Management |
Support Wi-Tek cloud platform management |
|
Certification |
CE, FCC, RoHS, UKCA |
|
Package Contents |
Switch X1PCS |
|
Power cord X1PCS |
|
|
Quick Installation Guide X1PCS |
|
|
Rack Mount Kit X2PCS （Except WI-PCES306G） |
|
|
Screw X8PCS （Except WI-PCES306G） |
|
|
Feet X4PCS |
|
