WI-PS206GF-I (V2)
The following parameters only for WI-PS206GF-I (Hardware version: V2)
● Unmanaged PoE switch
● 4*10/100 Base-TX PoE ports, 1*1000 Base-X SFP and 1*10/100/1000 Base-T RJ-45 uplink ports
● Port 1: 802.3af/at/bt 90W PoE output
Ports 2-4: 802.3 af/at 30W PoE output
● Multiple DIP mode: VLAN Mode/ PoE Watchdog Mode/ Extend Mode
● -30℃~65℃ operating temperature
● 6kV surge immunity
|

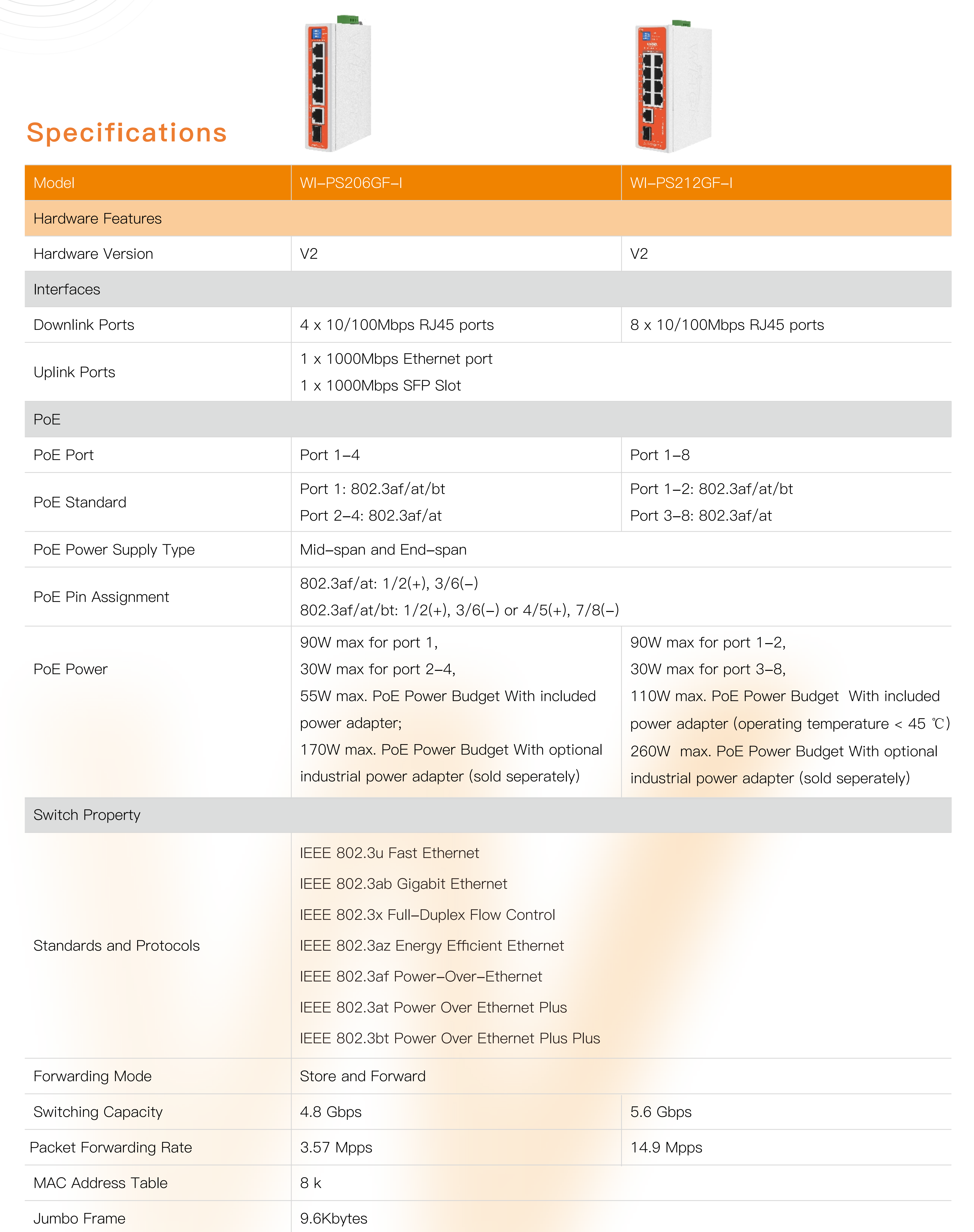

Model |
WI-PS206GF-I |
|
Hardware Version |
V2 |
|
Interfaces |
|
|
Downlink Ports |
4*10/100 Base-TX PoE RJ-45 (Auto-MDI/MDI-X) |
|
Uplink Ports |
1*1000 Base-T RJ45 1*1000 Base-X SFP Slot |
|
PoE |
|
|
PoE Standard |
Port 1: IEEE 802.3af/at/bt 90W PoE |
|
PoE Power Supply Type |
End-span and Mid-span |
|
PoE Pin Assignment |
802.3af/at: 1,2 (+), 3,6 (-) 802.3af/at/bt: 3, 6, 4, 5 (+), 1, 2, 7, 8 (-) |
|
PoE Power Output |
46~56V DC |
|
PoE Ports |
4 |
|
Switch Property |
|
|
Standards |
IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.3af Power-Over-Ethernet IEEE 802.3at Power Over Ethernet Plus IEEE 802.3bt Power Over Ethernet Plus Plus |
|
Forwarding Modes |
Store and Forward |
|
Packet Buffer |
1Mbit |
|
MAC Table |
8K |
|
Switching Capacity |
4.8Gbps |
|
Packet Forwarding Rate |
3.57Mpps |
|
Jumbo Frame |
9216bytes |
|
Power Supply |
|
|
Input Voltage |
Power 1,2,3 : 48~57V DC (PoE Switch),12~48V DC (Non-PoE Switch) |
|
Power Consumption |
Full loading without PoE ≤ 5W PoE power budget ≤ 55W |
|
Reverse polarity protection |
Support |
|
Environmental Reliability |
|
|
Protection |
Surge Immunity: 6kV/2kV |
|
ESD Protection: 8kV contact discharge/ 15kV air discharge |
|
|

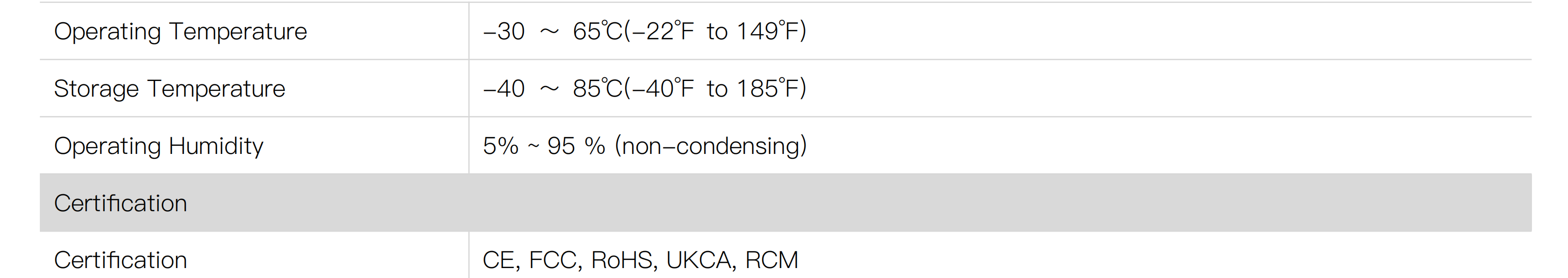

Operating Temperature |
-30℃~65℃ |
|
Storage Temperature |
-40℃~85℃ |
|
Operating Humidity |
5%~95% (Non-condensation) |
|
LED Indicators |
|
|
P (Power indicator) |
Off: the device is power off or failed Green On: the device power on is normal |
|
Link |
Off: port link down On: ports link up Blinking: data on TX/RX |
|
Uplink |
5-6 uplink ports Off: port link down Green On: port link up Green Blinking: data on TX/RX |
|
Dimensions (W*D*H) |
119*87*30mm |
|
Net Weight |
|
|
Installation |
Desktop/DIN-rail/wall mounting |
|
Certifications |
|
|
Certifications |
CE, FCC, RoHS |
