WI-AP310-Lite
●300Mbps Wireless Outdoor Access Point
●2 x 10/100Mbps Ethernet Ports
●300 Mbps at 2.4GHz
●Support IP65 Weatherproof
●Support Fit/Fat working mode
●Support mesh technology
●Support AP controller and cloud management
Model
WI-AP310-Lite

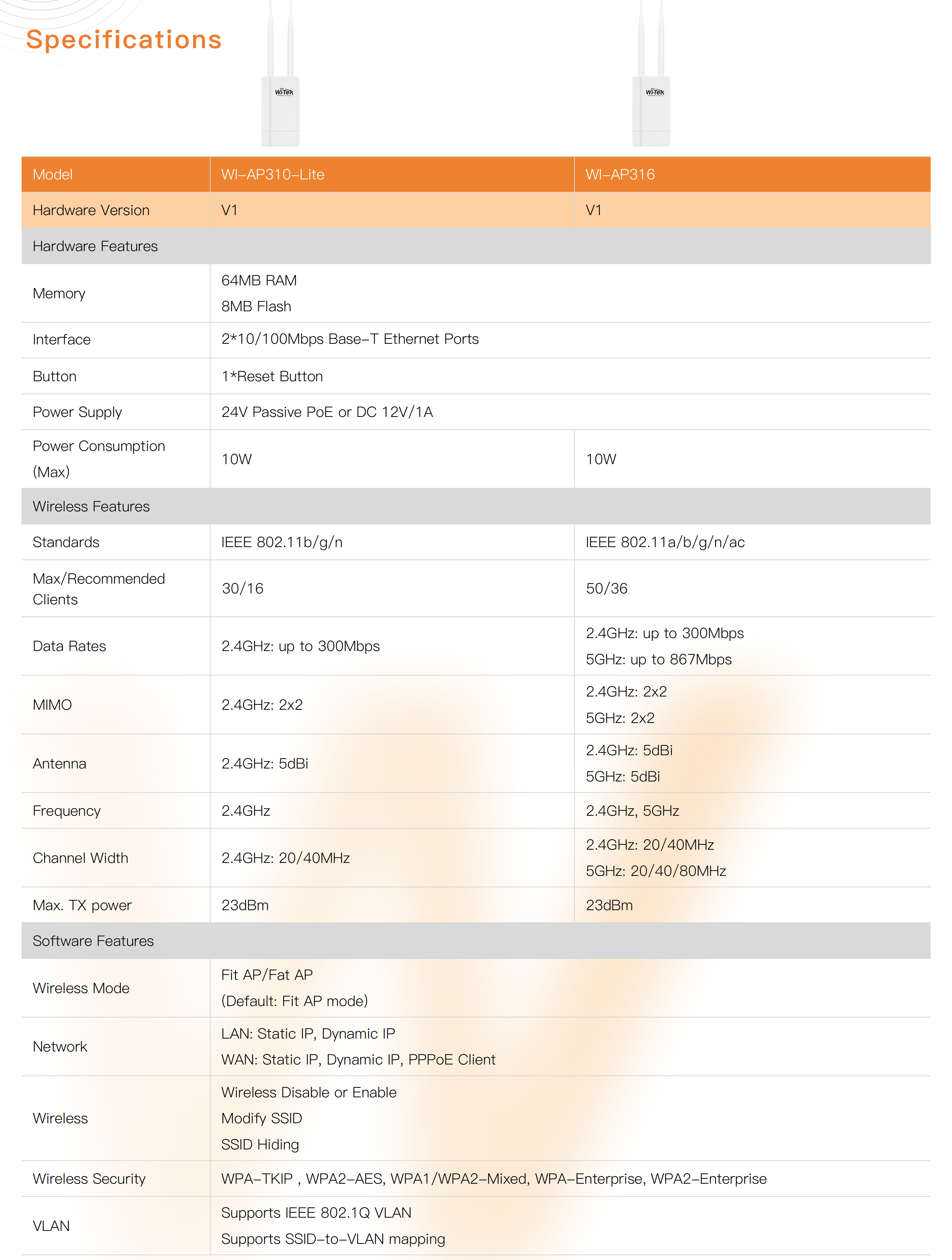

Hardware Specifications
Wireless Standards
802.11n/b/g/a
Operating Bands
2.4GHz
Antenna
2.4GHz: 5dBi
Spatial Steams
2.4GHz: 2x2 MIMO
Signal Rate
Up to 300Mbps at 2.4GHz
Receiver Sensitivity
2.4GHz:
802.11n: -69dbm@MCS7 -88dbm@MCS0.
802.11g: -73dbm@54Mbps -90dbm@6Mbps.
802.11b: -85dbm@11Mbps -94dbm@1Mbps.
Maximum Transmit Power
<23dbm
Interface
(2)10/100 Base-T Ethernet ports
Power Supply
DC 12V/1A (Not Included)
24V Passive PoE
Power Consumption
< 10W
Installation
Pole/Wall mounting
External Buttons
reset button (long press for 8 seconds to restore the factory default configuration)

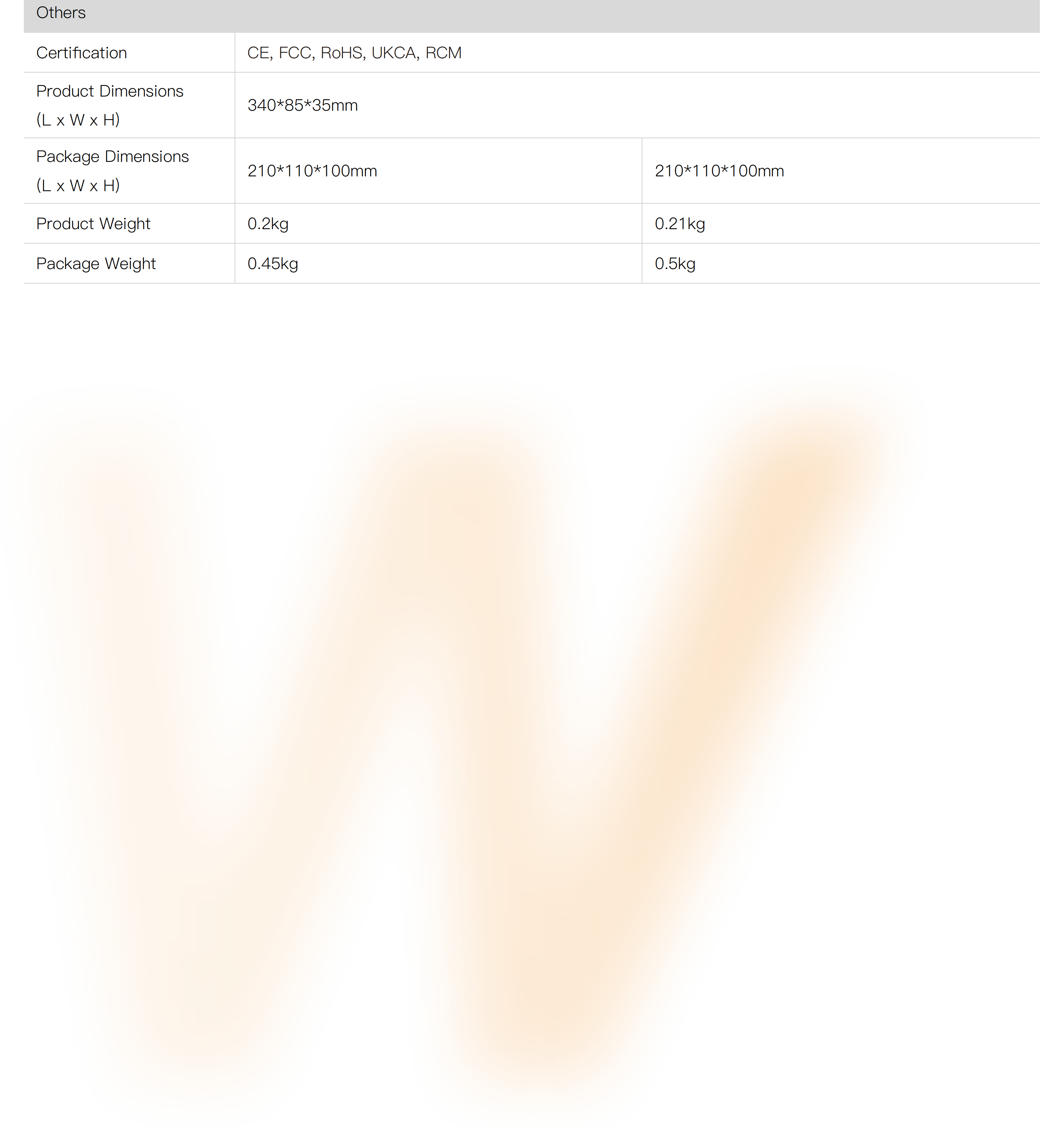

Dimensions
340mm * 85mm * 35mm
Environment
Operating Temperature: -40°C~55°C
Storage Temperature: -40°C~70°C
Operating Humidity: 5% ~ 95% (non-condensing)
Storage Humidity: 5% ~ 95% (non-condensing)

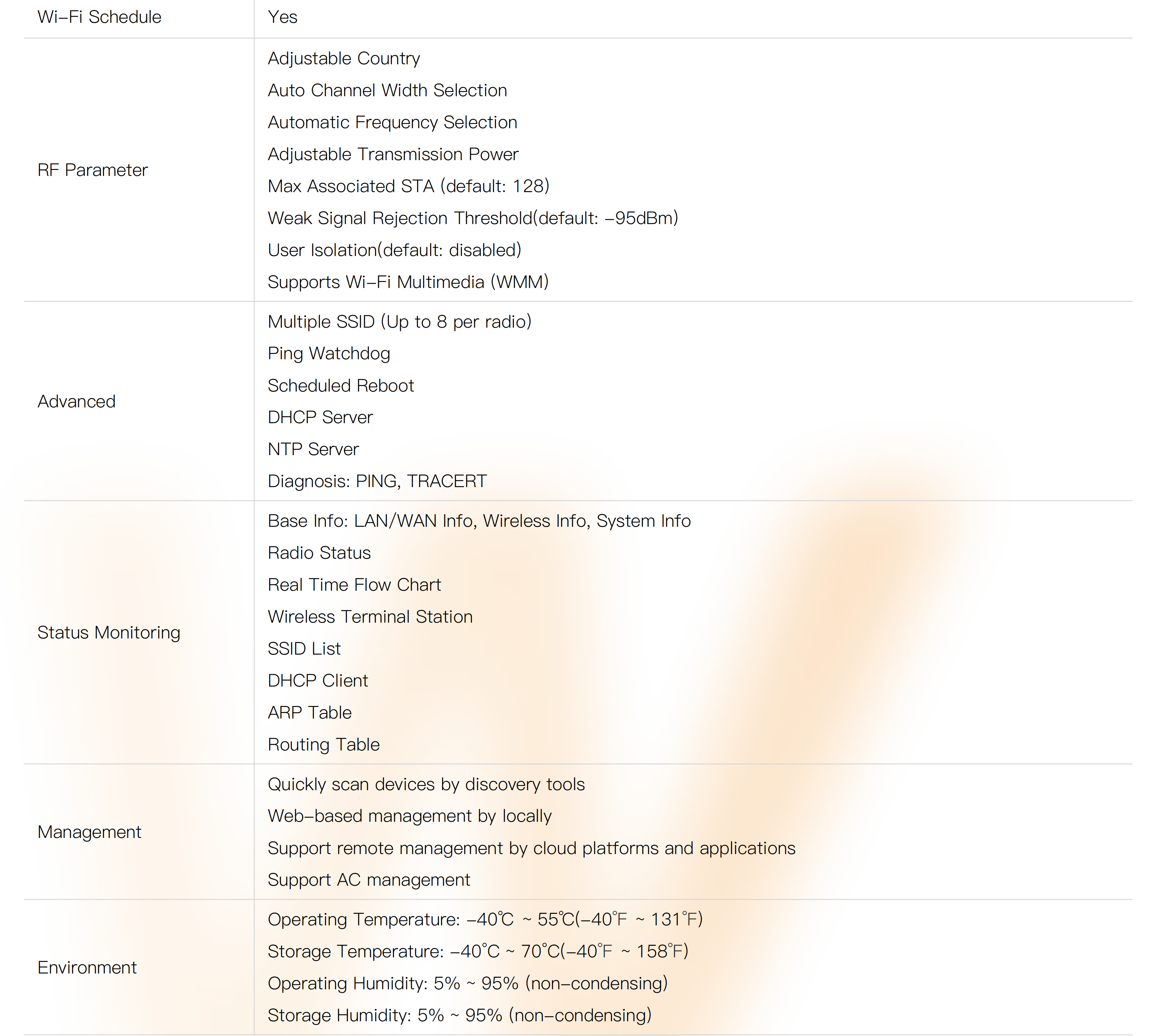

Software Features
Operating Mode
Fit AP, Fat AP
Wireless Function
Up to 8 SSIDs
Support SSID hiding, enable/disable wireless radio
Manual and automatic channel assignment
Manual and automatic bandwidth assignment
TxPower control
One-click mesh
Roaming
Support Layer 2 roaming
Wireless Security
Captive portal authentication
Static blacklist and whitelist
Wireless Isolation between clients
SSID to VLAN mapping
Support 802.1X
WPA/WPA2/PSK/WPA/WPA2-Enterprise
Internet Connection Type
Support Static IP, DHCP, PPPoE Dial Up
Management
Support local management with web
Support centralized management with AC
Support remote management with Wi-Tek cloud platform
Platform Management
Features
Automatic RF adjustment via the platform
Unified configuration via the platform
Unified monitoring via the platform
